Canon EOS C500 Cinema Camera Firmware v184.108.40.206.00 Now Available
By| December 19, 2013
Canon has released a firmware update for the EOS C500/C500 PL Cinema EOS Cameras.

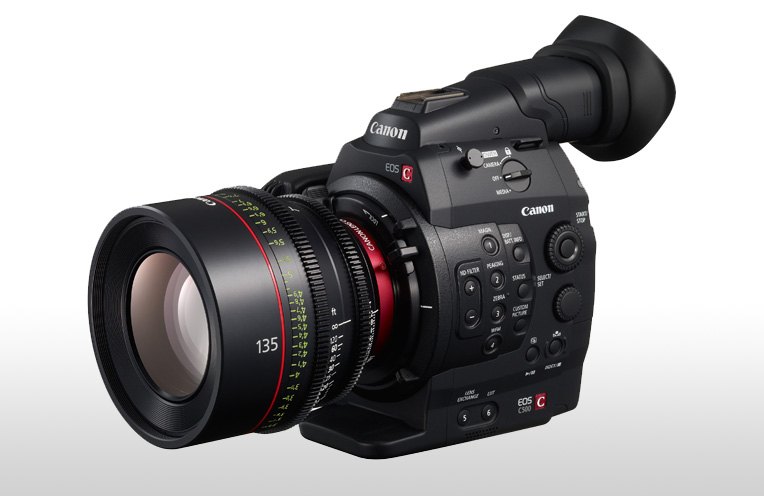

EOS C500 Cinema EOS Camera & EOS C500PL Cinema EOS Camera
- When using the Magnify focus assist function, the ability to move the magnified viewing area around the LCD has been added.
- Maximum ISO setting has been increased to ISO 80,000.
- Cinema Gamut mode and DCI-P3+ mode have been added to provide expanded color gamut options in RAW capture.
- 4096×1080-pixel RAW format resolution has been added.
- A Key Lock menu setting has been added which now makes it possible to lock all operations, including the START/STOP button.
- Using the optional Canon WFT-E6 Wireless File Transmitter, the camera’s remote-control application allows up to two users to access the same unit via a Wi-Fi link providing simultaneous and independent control of camera operation and metadata input.
- Canon Log LUT support has been made possible for HD/SD SDI terminal output.
- ACESproxy output from monitor terminal has been added.
- [ND]/[ND-] have been added as functions that can be allocated to any assignable button.
EOS C500 Digital Cinema Camera only
- Ability to assign the two control dials (body and grip) to operate either Iris or ISO sensitivity independently has been added.
- Peripheral Illumination Correction Data has been added for seven (7) Canon Cinema lenses (EF mount) and eleven (11) Canon EF Lenses.
Cinema lenses (EF-mount) and Canon EF Lenses which benefit from the new firmware update:
The seven (7) supported Canon Cinema Lenses (EF-mount) are:
- CN-E15.5-47mm T2.8 L S
- CN-E30-105mm T2.8 L S
- CN-E14mm T3.1 L F
- CN-E24mm T1.5 L F
- CN-E50mm T1.3 L F
- CN-E85mm T1.3 L F
- CN-E135mm T2.2 L F
Please note this firmware version does not include the CN-E35mm T1.5 L F.
The eleven (11) supported Canon EF Lenses are:
- EF-S18-135mm f/3.5-5.6 IS STM
- EF500mm f/4L IS II USM
- EF600mm f/4L IS II USM
- EF28mm f/2.8 IS USM
- EF24mm f/2.8 IS USM
- EF40mm f/2.8 STM
- EF24-70mm f/4L IS USM
- EF35mm f/2 IS USM
- EF-S18-55mm f/3.5-5.6 IS STM
- EF24-70mm f/2.8L II USM
- EF200-400mm f/4L IS USM Extender 1.4x
Firmware Version 220.127.116.11.00 is for Cinema EOS C500 and EOS C500 PL cameras with Firmware Version 18.104.22.168.00 through 22.214.171.124. If your camera’s firmware is already Version 126.96.36.199.00, it is not necessary to update the firmware. Once the camera is updated to the latest firmware version, it cannot be restored to a previous version.
The Instruction Manual provides more information on the new features and benefits available in this firmware update.
Download the new version of the Instruction Manual for the EOS C500.
Download the new version of the Instruction Manual for the EOS C500 PL.
