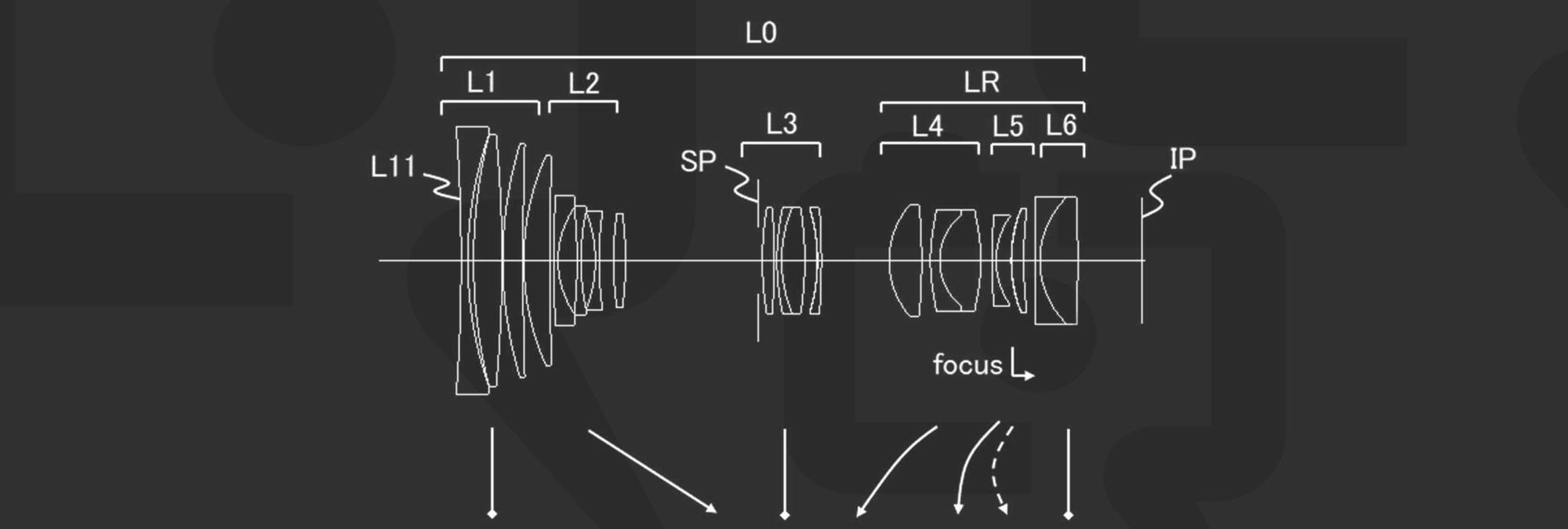

This is the patent application (2024-079936) that shows off the Canon RF 24-105 F2.8 Z lens, so it's unknown if this was a one-and-done patent application and the rest of the embodiments will never come out. But with Canon announcing two VR lenses for APS-C – who can say what Canon is thinking at this point?

This first embodiment is interesting because even though it's a Z so will be big and heavy. But it's a really sweet focal range that I would sell a kidney for. I'm going to call it a Z lens just because it's huge, and has inner zoom and focus. It's also extremely complex.

Canon RF-S 15-60mm F2.8 Z

WideMediumTelephoto
Focal Length15.4529.9958.20
F-Number2.902.902.90
Half Angle of View41.524.413.2
Lens Length144.55144.55144.55
Back Focus Distance13.6213.6213.62

Also of interesting note is this full frame lens which is a monster in the same sentence as the Canon RF 24-105mm F2.8L IS USM Z. Though the focal range leaves me a bit questioning, I suspect that Canon for marketing reasons would call this a 21-80mm lens. It also features dual focusing motors well – just to add to that eye-watering price that such a lens would command.

Canon RF 22-80mm F2.8L Z

WideMediumTelephoto
Focal Length22.6043.4282.99
F-Number2.902.902.90
Half Angle of View44.326.514.1
Lens Length216.25216.25216.25
Back Focus Distance11.8326.4322.33

 As with all patent applications, none of these may end up as actual products, but it's a glimpse into Canon's ongoing research.

Source: Japan Patent Application 2024-079936
