At first, when I was writing up this patent application (2024-082112), I was leaning toward what others are mentioning on the internet that these are for ILC (interchangeable lens cameras) but after reading more, and looking at the back focus distances involved, I think it's more likely that these are for a compact rangefinder styled APS-C or full-frame camera.

All these lenses have back focus distances which would have the lens sticking nearly 8 to 9mm into the camera, with the rear optical element being the largest. The element design is similar to the existing lenses, such as the EOS RF 28mm f/2.8 STM. But the EOS RF 28mm f/2.8 STM has far less ingress into the mount.

So taking everything into account, I believe rules these out as RF and RF-S lenses.

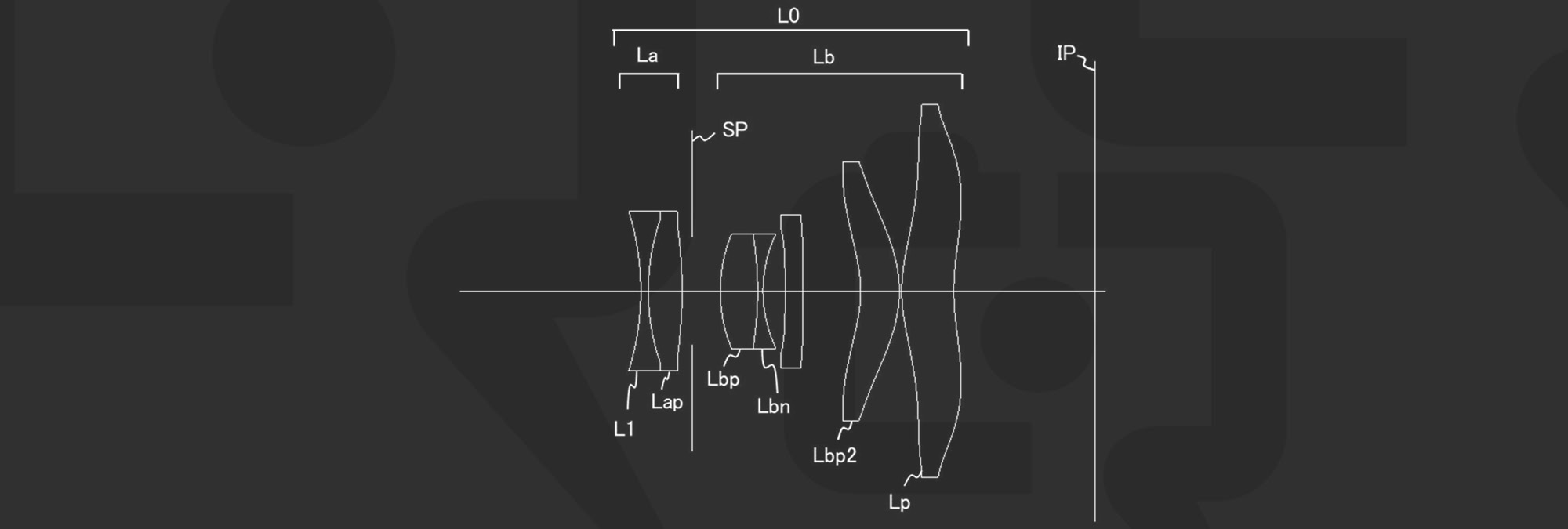

Canon Full Frame 28mm F2.8

Focal Length28.50
F-Number2.86
Half Angle of View37.20
Image Height21.64
Lens Length42.64
Back Focus Distance13.25

Canon Full Frame 24mm F2.8

Focal Length24.50
F-Number2.88
Half Angle of View41.45
Image Height21.64
Lens Length47.90
Back Focus Distance11.28

Canon 33mm F1.8 APS-C

This one is curious though, because it's a 50mm which seems a little long for a compact, and it's a complicated design. It should be noted that the near-perfect optically EF-M 32mm f/1.4 STM was far more complex.

Focal Length33.08
F-Number1.85
Half Angle of View22.44
Image Height13.66
Lens Length41.00
Back Focus Distance11.91

As with every single patent application nothing discussed here is guaranteed to make it into production, or even a real patent as there are still many patent process steps yet to finalize the patent application. This is simply a look into the research and development that Canon is doing.

Source: Japan Patent Application 2024-082112
