Patent: Canon continues Quad-Pixel autofocus development

Canon Rumors Guy

Canon EOS 40D
CR Pro
  • Jul 20, 2010
    9,731
    2,396
    Canada
    www.canonrumors.com
    The next autofocus advancement coming from Canon will likely be in the form of quad-pixel autofocus, I would think we’d see such technology appear in the Canon EOS R1 first.
    Quad-Pixel AF would improve the autofocus performance when you’re shooting in any orientation.
    Canon Quad-Pixel Overview

    [Publication Number] Japanese Patent Application Laid-Open No. 2022-2383 (P2022-2383A)
    [Publication date] January 6, 2022
    INDUSTRIAL APPLICABILITY: An image pickup device, an image pickup device, and a focus detection method.
    [Application date] June 22, 2020
    [Applicant]
    [Identification number] 000001007
    [Name or name] Canon Inc.
    PROBLEM TO BE SOLVED: To increase the division direction of a pupil region while suppressing variation in sensitivity of an image signal.
    [0002]
    As one of the focus detection methods of an image pickup device, a so-called image pickup surface phase difference method, in which a pupil division signal is acquired by using a focus detection pixel formed in an...

    Continue reading...



    • Like
    Reactions: 1 users

    Antono Refa

    EOS R
    Mar 26, 2014
    1,416
    509
    Samsung is hot on Canon's heels (page 9/22)...

    PS
    Neither seems to use a quad-pixel design (each pixel has a pair of photodiodes - just rotated in different directions)?
    AFAIK, DSLR autofocus sensors don't measure in two directions on the same sensor spot, just close enough to do the trick. Also, they have a larger area than a pixel.

    Does seem odd to me that there's a correlation between the direction in which the AF is sensitive and the pixel colors - the horizontal & vertical ones are all on blue & green pixels, while the diagonal ones are all on red pixels. I know the pixels' response is on a wide spectrum with a peak in the relevant color (not exactly red, blue, and green), but I wonder whether this will hurt AF performance.

    [I doubt this would be a big problem, one could probably autofocus in a working orientation and rotate/recompose. That, or the actual distribution might differ to prevent that.]

    • Like
    Reactions: 1 users
    Upvote 0

    scottburgess

    Canonical Canon
    Jun 20, 2013
    247
    37
    PS
    Neither seems to use a quad-pixel design (each pixel has a pair of photodiodes - just rotated in different directions)?
    The diagram illustrates a design change. The notation about "sensitivity differences" between sites might indicate that Canon intends to turn each pixel into a Bayer color array (I don't know Japanese, so I can't say with any certainty if the shading is for color), effectively obtaining the Foveon-esque pixel element they've long sought. That's speculative, though. It's really hard to say from a small snippet of one patent how the phase difference elements will be deployed or what the long-term strategy is.

    • Like
    Reactions: 1 user
    Upvote 0

    bbasiaga

    Canon Shooter
    Nov 15, 2011
    584
    740
    USA
    Could be exciting! I'd like to see what they can do with it. The AF performance is so amazing already. This seems like it would take the last 'weakness' out of the system.

    An R1, a 300 2.8, a set of extenders would be my dream kit, in addition to what I have. Just need the funds, and one of those neuralizers from MIB to make my wife 'remember' that she gave me permission to buy it all.

    Brian

    • Like
    Reactions: 3 users
    Upvote 0

    Hector1970

    EOS R
    CR Pro
    Mar 22, 2012
    1,487
    1,037
    The modern camera is ridiculously good. Focusing is almost the last thing to perfect
    Could be exciting! I'd like to see what they can do with it. The AF performance is so amazing already. This seems like it would take the last 'weakness' out of the system.

    An R1, a 300 2.8, a set of extenders would be my dream kit, in addition to what I have. Just need the funds, and one of those neuralizers from MIB to make my wife 'remember' that she gave me permission to buy it all.

    Brian
    Modern camera's have gotten so good, they are close to perfection. I'm sure high ISO performance can be improved a little but is remarkably good compared to a few years ago. I'm sure we will have higher MP and more FPS but both can become more trouble than they are worth.
    Focusing really is the last thing to perfect. It's good but far from perfect. It will be interesting how much better they can make it. Maybe quad pixel AF sensor will be a breakthrough.
    I liked your last comment , some day I must tell my wife if anything happens to me to sell my photography gear for 10 times what I said I paid for it.

    Upvote 0

    Juangrande

    EOS RP
    Mar 6, 2017
    245
    319
    The modern camera is ridiculously good. Focusing is almost the last thing to perfect

    Modern camera's have gotten so good, they are close to perfection. I'm sure high ISO performance can be improved a little but is remarkably good compared to a few years ago. I'm sure we will have higher MP and more FPS but both can become more trouble than they are worth.
    Focusing really is the last thing to perfect. It's good but far from perfect. It will be interesting how much better they can make it. Maybe quad pixel AF sensor will be a breakthrough.
    I liked your last comment , some day I must tell my wife if anything happens to me to sell my photography gear for 10 times what I said I paid for it.
    As a portrait photographer that uses multiple strobes 95% of the time, even outdoors, the holy grail is a sensor that can do flash sync at any shutter speed. This is all I’ve ever wanted. Everything else is pretty much there in the R5.

    • Like
    Reactions: 1 user
    Upvote 0

    privatebydesign

    I post too Much on Here!!
    CR Pro
    Jan 29, 2011
    10,673
    6,114
    As a portrait photographer that uses multiple strobes 95% of the time, even outdoors, the holy grail is a sensor that can do flash sync at any shutter speed. This is all I’ve ever wanted. Everything else is pretty much there in the R5.
    Only when that sync speed is matched with flash that a can output meaningful light levels at those shorter durations. The two go hand in hand and at this point in time the flash power isn’t there...

    • Like
    Reactions: 4 users
    Upvote 0

    privatebydesign

    I post too Much on Here!!
    CR Pro
    Jan 29, 2011
    10,673
    6,114
    My ProFoto lights can go as fast 1/80,000s

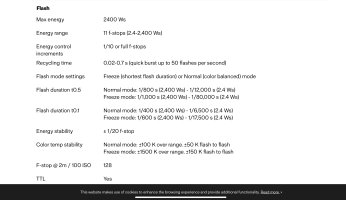

    Yes if you are talking about the Pro-10 it outputs 2.4 Ws at 1/80,000 sec which is about as useful as a small candle, and that is just a copout t0.5 time.

    The same $16,000 power pack and $3,000 head flash actually takes 1/400 sec to output a full power flash in normal mode. Any shutter speed faster than 1/400 second is going to limit flash power. And that was my point.....


    • Like
    Reactions: 4 users
    Upvote 0
