What does the AD-E1 actually do?

neuroanatomist

I post too Much on Here!!
CR Pro
Jul 21, 2010
27,915
7,997

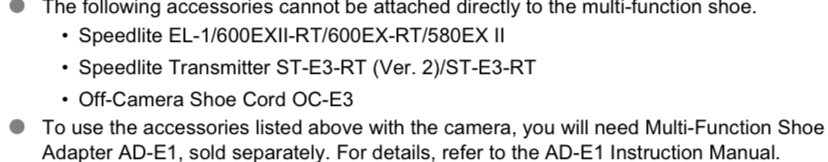

The R3 has a new hotshoe. The AD-E1 allows you to use current Speedlites (up to and including the EL-1, and all the older ones as well) with the R3. Without the adapter, you cannot use high-end old hotshoe attachments on the R3.

By high-end mean with weather sealing. So the low guide number, inexpensive flashes will work directly on the R3 More details in this post.

So far, the only native Canon product that works in the R3 hotshoe is the just-announced ST-E10. That’s a replacement for the ST-E3-RT, with the advantage that it doesn’t require any batteries (it can draw power from the cameras battery through the new hotshoe). Presumably there will be R3-native flashes coming out at some point, and this hotshoe will be used on R series cameras going forward.

  • Like
Reactions: 1 users
Upvote 0
It's the same shoe if you want it to be with all older flashes but newer stuff can now be made to draw power from the cameras battery instead of needing AA's or rechargeable. I like the thought of having a trigger for my strobes but not have to worry about keeping batteries for them. Maybe this will be added to future R's, not just pro bodies like the R3. Triggers use so low power that it would be perfect for that and not really diminish the camera battery any measurable amount. I dont use Vedic on my R5 but I can see how mics and other video stuff could benefit too.

Upvote 0

unfocused

Photos/Photo Book Reviews: www.thecuriouseye.com
Jul 20, 2010
6,952
5,090
69
Springfield, IL
www.thecuriouseye.com
Apparently all the old flashes work, but the old weather-sealed flashes won’t have a weather-sealed connection to the R3.
I agree with Neuro and it's worth some clarifying (with the understanding that none of us has gotten an R3 in hand to confirm). I welcome Neuro's corrections if my understanding is wrong.

I believe the issue is the rubber gasket that seals the higher end flash connections, like the 600 EX II. My understanding is that the weather sealing gasket physically interferes with the new hotshoe. It doesn't seem to have anything at all do with electronics and thus any non weather sealed hotshoe accessory should work.

I've got the 600 EXII in front of me and honestly it looks pretty easy to just remove the rubber gasket if you don't care about weather sealing.

Just remember that if someone leaves their flash out in the rain you may never have that recipe again.

Upvote 0

neuroanatomist

I post too Much on Here!!
CR Pro
Jul 21, 2010
27,915
7,997
My understanding is that the weather sealing gasket physically interferes with the new hotshoe.

I've got the 600 EXII in front of me and honestly it looks pretty easy to just remove the rubber gasket if you don't care about weather sealing.
I don’t think that’s correct (on the announcement day I had the impression the adapter was required for functionality, but I now believe it is not).

I believe the current sealed hotshoe products mount and function normally on the R3, and there’s no need to remove the gasket. However, the adapter is required for a weather-sealed connection.

Looking at the ST-E10 and the ST-E3, the back ends of the gaskets are identical. The difference is the gasket on the ST-E10 extends further forward to cover the additional connection.


I think my understanding is consistent with the R3 specs. This is from Canon Europe:


The current current sealed hotshoe products are listed as compatible, with a footnote indicating the adapter is required to retain weather sealing.

  • Like
Reactions: 1 user
Upvote 0

privatebydesign

I post too Much on Here!!
CR Pro
Jan 29, 2011
10,673
6,114
I think Neuros second comment a moment ago is correct and his earlier one Sep 14th was not.

I believe you can use any flash/accessory on the R3 but it won't retain weather sealing. All the AS-E1 does is weather seal the R3 and adapt the hotshot to the older outer shape to weather seal the older products. The firing pins and communications are the same in the older accessories but they obviously don't fit into use or weather seal the new series of connections in the front edge of the R3 hotshoe.

  • Like
Reactions: 1 users
Upvote 0

unfocused

Photos/Photo Book Reviews: www.thecuriouseye.com
Jul 20, 2010
6,952
5,090
69
Springfield, IL
www.thecuriouseye.com
It also occurs to me that a small piece of electrical tape might effectively substitute for the $40 adapter.
Thanks for the thorough comments. I'm sort of tempted to cancel my preorder, as I can't imagine ever needing the weather sealing. On the other hand, with all I've spent this year, the $40 price tag seems insignificant. I think this is supposed to ship before the R3. If I happen to get the R3 first and the 600 RT fits without the adapter, I may cancel at that time.

Upvote 0

neuroanatomist

I post too Much on Here!!
CR Pro
Jul 21, 2010
27,915
7,997
Thanks for the thorough comments. I'm sort of tempted to cancel my preorder, as I can't imagine ever needing the weather sealing. On the other hand, with all I've spent this year, the $40 price tag seems insignificant. I think this is supposed to ship before the R3. If I happen to get the R3 first and the 600 RT fits without the adapter, I may cancel at that time.
I am thinking exactly the same thing.

Upvote 0

I_Miss_Minolta

RP & R7
Sep 16, 2014
18
4
The AD-E1 is nothing more than a gasket translation device. If your environment requires weather sealing, then the AD-E1 is required. If not, then you can just take the gasket off the offending unit and drive on. The 430EX III-RT is fully compatible precisely because it lacks the gasket. I own the R7 and atop it rests a ST-E3-RT -- sans gasket.

Upvote 0

neuroanatomist

I post too Much on Here!!
CR Pro
Jul 21, 2010
27,915
7,997
The AD-E1 is nothing more than a gasket translation device. If your environment requires weather sealing, then the AD-E1 is required.
Correct up to this point.

If not, then you can just take the gasket off the offending unit and drive on. The 430EX III-RT is fully compatible precisely because it lacks the gasket. I own the R7 and atop it rests a ST-E3-RT -- sans gasket.
Not correct. There’s no need to remove the gasket. A weather-sealed flash is fully compatible with the new multifunction shoe, except (as you correctly state above) it won’t be weather-sealed unless the AD-E1 is used.

I routinely use my four 600EX-RT flashes (one mounted at a time, of course) with my R3. I have an AD-E1, but I haven’t needed it so far.

There was a lot of confusion over this initially, before the R3 was in anyone’s hands. If you removed the gasket from your ST-E3-RT, you probably won’t miss it but doing so wasn’t necessary.

Here is a 600EX mounted directly on the R3, you can see the flash’s gasket does not extend far enough forward to cover the front part of the hotshoe.


Here is the flash mounted with the AD-E1 in between, where everything is sealed.


  • Like
Reactions: 1 user
Upvote 0

becceric

Making clumsy photographic mistakes since 1980
CR Pro
Oct 30, 2016
304
600
I agree with Neuro and it's worth some clarifying (with the understanding that none of us has gotten an R3 in hand to confirm). I welcome Neuro's corrections if my understanding is wrong.

I believe the issue is the rubber gasket that seals the higher end flash connections, like the 600 EX II. My understanding is that the weather sealing gasket physically interferes with the new hotshoe. It doesn't seem to have anything at all do with electronics and thus any non weather sealed hotshoe accessory should work.

I've got the 600 EXII in front of me and honestly it looks pretty easy to just remove the rubber gasket if you don't care about weather sealing.

Just remember that if someone leaves their flash out in the rain you may never have that recipe again.
Would that rain happen to create MacArthur’s Spark?

Upvote 0

Del Paso

M3 Singlestroke
CR Pro
Aug 9, 2018
1,934
2,296
So basicly, don't buy the R3 because you are forced to buy an adaptor for your old flashes, when there was never a problem with the old hotshoes, but Canon got greedy and created a new problem which costs the consumer money.
I think you're turning an advantage (wheather sealing) into an imaginary disadvantage...
Old strobes still fit without adapter.

Upvote 0

I_Miss_Minolta

RP & R7
Sep 16, 2014
18
4
Not correct. There’s no need to remove the gasket. A weather-sealed flash is fully compatible with the new multifunction shoe, except (as you correctly state above) it won’t be weather-sealed unless the AD-E1 is used.
You're jeopardizing your speedlite's locking foot every time you CRANK that on your camera. With my ST-E3-RT, I could only get half way before the lock stopped cold. If I pushed super hard, I could get it to lock. Why would I do that when it destroys the weather sealing anyway?

Upvote 0

neuroanatomist

I post too Much on Here!!
CR Pro
Jul 21, 2010
27,915
7,997
You're jeopardizing your speedlite's locking foot every time you CRANK that on your camera. With my ST-E3-RT, I could only get half way before the lock stopped cold. If I pushed super hard, I could get it to lock. Why would I do that when it destroys the weather sealing anyway?
I have four 600EX-RT flashes and none need to be 'cranked' onto my R3, I just push the locking lever over firmly and they lock down. They mount in exactly the same way they did on my 1D X, with the same force required. Perhaps your ST-E3 was damaged to begin with?

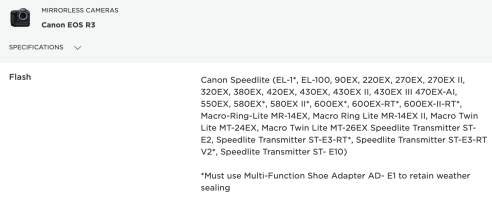

Regardless, Canon states they are compatible so please stop spreading your misinformation.
