Here are the first images and specifications of the Canon EOS R and the new RF mount lenses

This site contains affiliate links to products and services. We may receive a commission for purchases made through these links.

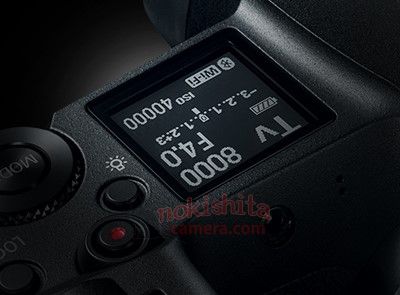

The first specifications and images of the Canon EOS R and RF lenses have leaked ahead of next week’s announcement.

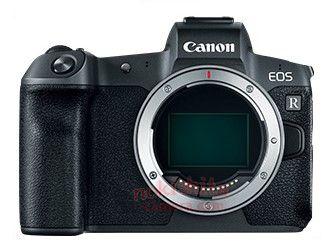

Canon EOS R Specifications

  • 30.3mp Full Frame CMOS
  • Dual pixel CMOS AF
    • 100% vertical x 88% horizontal AF coverage (We think)
  • EV -6 low brightness autofocus
  • 4K video
  • Touchscreen LCD
  • Articulating screen
  • Wi-Fi
  • Bluetooth
  • Microphone jack
  • Headphone jack
  • Dustproof
  • Drip-proof
  • Magnesium body
  • Battery: LP-E6N
  • Battery grip: BG-E22
  • Size: Width of about 136 mm × height of about 98 mm
  • Weight: Approximately 580 g
  • Mount: inner diameter 54 mm, flange back 20 mm, 12 pin

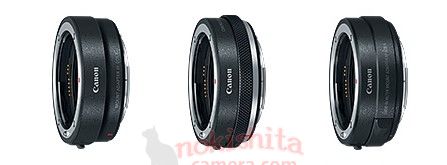

  • Mount adapter: “Mount adapter EF – EOS R” “Control ring mount adapter EF – EOS R” “Drop – in filter mount adapter EF – EOS R”

Canon RF 35mm f/1.8 IS STM Macro

  • Size: Approximately 74mm (2.9 inches) × 62mm (2.4 inches)
  • Weight: Approximately 306g (10.8oz)

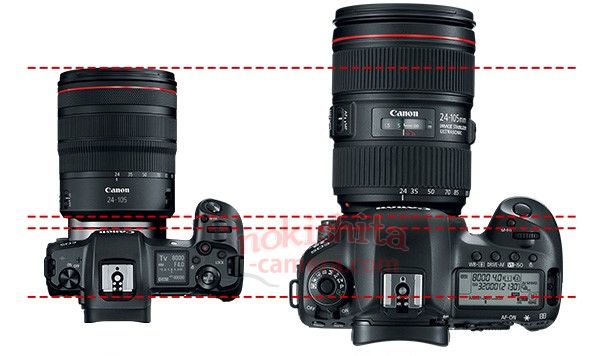

Canon RF 24-105mm f/4L IS USM

  • Size: Approximately 83mm (3.26 inches) x 107mm (4.2 inches)
    • Compared to the EF 24-105mm f/4L IS II 83mm (3.26 inches) x 118mm (4.64 inches)
  • Weight: Approximately 698g (1.5lbs)
    • Compared to the EF 105mm f/4L IS II 795g (1.75lbs)


Particular Member
Aug 16, 2012

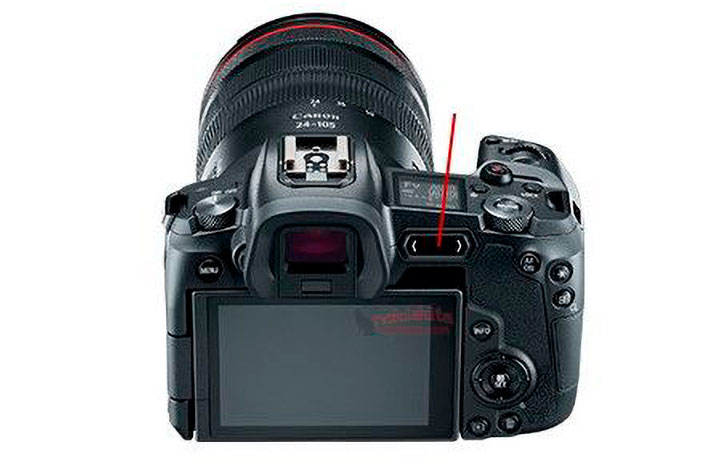

Control wheel = RIP. Thought it might survive, but I guess the tilty-flippy needed some of that room.

Cards = Unknown. Looks SD sized, but how many = TBD

FPS unknown

IBIS unknown

- A


Oct 15, 2011
Osaka, Japan
I'm trying to figure out which gear to try and sell to subsidize what I'm guessing will be a $3000-3500 camera. I like my M3 and EF-M 22mm, but I hardly see me investing in any of the EOS M line anymore. Yet and still, I still love the compactness of that combo. Definitely time to part ways with the 5D Mark II and 80-200mm.


EOS RP + 5D Classic
Aug 31, 2018

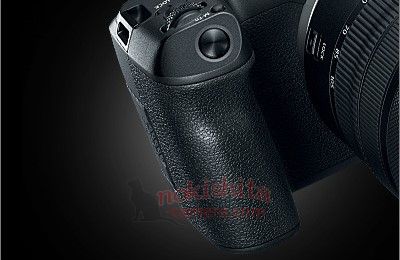

I wanted a nice, chunky grip :cry::cry::cry:

Wish this were a pro camera. I’ll save my money until then.
