Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown

This site contains affiliate links to products and services. We may receive a commission for purchases made through these links.

By Roger Cicala Published August 24, 2020

Canon RF 600mm f/11 IS STM at Lensrentals.com starting at $37 for a 7 day rental

Here I sit, the guy who gets poetic writing about tiny resolution differences in high-priced wide-aperture lenses, having just bought this lens. Its aperture is in the diffraction- softening range. The manufacturer’s (pronounced ‘better than reality’) MTF charts aren’t very good.

word image 1 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
600mm f/11 compared to 100-500mm f4.5-7.1 at 500mm, Canon.com

So why did I buy this pig? Because it could fit a need, of course. Despite the religious fervor with which some worship certain lenses and brands, despite my complaints about this lens’ astigmatism or that lens’ corners, it always comes down to ‘does it do the job’.

I spend a week a month at a vacation home on a lagoon next to a wildlife refuge. Photography is not why I go. It’s downtime and I don’t take a bunch of gear. But sometimes I see really cool birds or reptiles and wish I could get a picture. The reptiles are often alligators, so I wish to take that picture from a distance. So if this lens can get me ‘internet acceptable’ images for $699 and 2 pounds, it would be worthwhile. (I rented the camera, I still haven’t committed to a mirrorless system yet. Commitment, well, it’s not my strength.)

Since the lens arrived the day before I left, Aaron suggested we should take it apart and see what’s in there. Besides air. At 2 pounds, there’s going to be a lot of air. I

was leaving in a few hours, but we do this all the time, so we were confident. We were, perhaps, even, a tiny bit arrogant, since the only R mount camera we had available was back at my house, packed for the drive. (This here is what we professional writer types call foreshadowing.)

A Quick “So How’d They Do That?”

It’s f/11 but it’s still 600mm in a 2 pound package, which is unheard of. They do it with diffraction optics. The same type as the 400mm f/4 IS DO, specifically, the newer ‘gapless’ diffraction optics. This basically is market speak for ‘instead of an air space between the DO elements, we invented some special glue’.

word image 2 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Image from Canon.com technical paper: “Gapless Dual-Layered Diffractive Optical Elements.”

Compared to ‘gapped’ diffraction optics, the gapless design reduces longitudinal chromatic aberration, ring-shaped flare, and improves contrast. Some. You can read about it here.

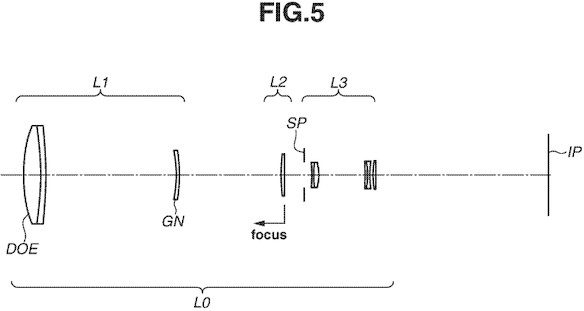

While I can’t find the lens block diagram, Canon has a fairly recent patent for 600mm and 800mm f/11 lenses that seems right. We know there are 10 elements in 7 groups in the 600mm f/11, (compared to 17 in 13 for a 600mm f/4 IS; or 18 in 12 for the 400mm f/4 IS DO lens). The patent is one element short of that, but patents often differ from final product a bit.

word image 3 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown

I have to say, the DO element being right up there at the front makes me a bit nervous from a scratch and chip standpoint. But, the construction should be fairly simple in there. We think. Those of you who follow our teardowns know things are usually not like we think they’re going to be.

Let’s Take Stuff Apart

From the outside, it’s pretty much a standard looking lens, except for the ring that locks-unlocks to extend the barrel. You have to unlock, extend, and relock before the camera will let you shoot with the lens (shown here with barrel extended). Lots of air in there, we said. Easy disassembly, we said. It’ll be fun, we said.

Narrator’s voice: But it was not easy, and it was not fun.

word image 4 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

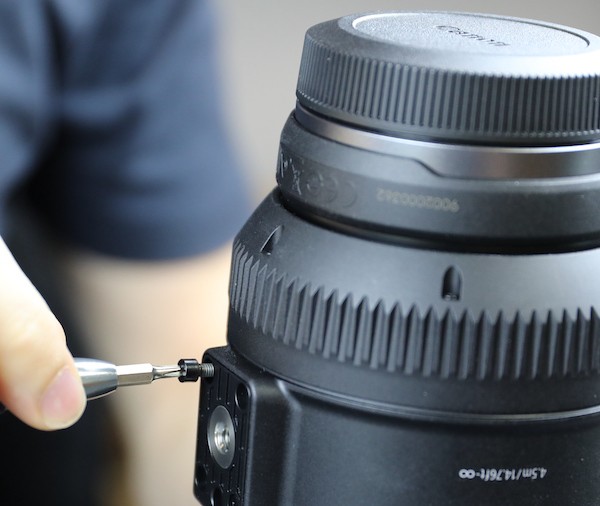

We removed the tripod mount first; a lot of telephoto lenses give you some access underneath the tripod mount.

word image 5 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown

word image 6 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020 We found the mounting plate was quite a heavy, robust thing.
word image 7 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020 But there wasn’t any access underneath it.

Lensrentals.com, 2020 The rear mount is pretty much standard.

word image 8 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

The bayonet is held in place by 7 long, large screws. That’s more than most bayonet mounts, but the screws mount into plastic, not metal, inside so that seems like a good idea.

word image 9 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Then we pop out the plastic light baffle. By the way, it says “made in Taiwan” on the inside of the baffle. I only throw this out because someone’s going to pop out their light baffle, read that, and then have a melt-down on the internet. Doesn’t matter where your lens is assembled, the parts inside it come from all over.

word image 10 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Then we take off the bayonet.

word image 11 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

The spacer ring and rearmost barrel lift right off.

word image 12 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020
word image 13 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

While this is not a weather-resistant lens, but there are some felt seals under various barrels, probably as friction pads.

word image 14 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

We took out the PCB and then removed the screws holding the ‘adjust-lock’ barrel in place.

word image 15 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Which slides right off. This concludes the ‘just like we expected’ portion of this teardown.

word image 16 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

You can see the circular tensioning spring right above the felt in the image above; there’s also a standard spring on the opposite side of this barrel.

word image 17 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

There are a pair of large metal guides or posts that are involved in the locking / extension mechanism, and probably provide some barrel support. We think. Honestly, we’ve never seen anything quite like this mechanism, so we’re kind of hunting our way around here.

word image 18 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020 It seemed the likely next move was to take those guides out.
word image 19 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

But they liked it where they were. Taking out the screws wasn’t quite enough to encourage them to leave their posts. So we took out the ring of screws at the top of the extending barrel.

word image 20 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown

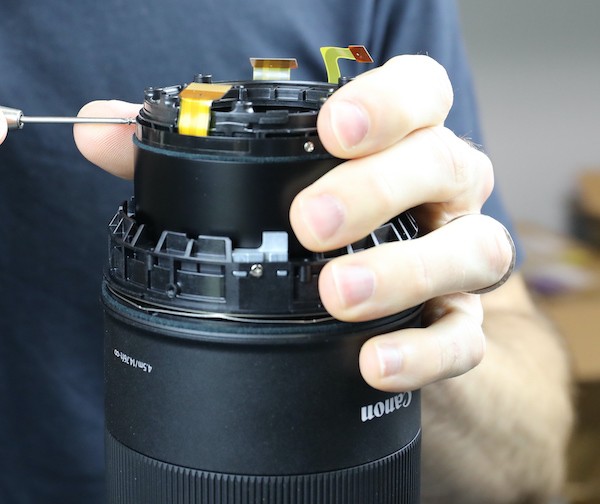

Lensrentals.com, 2020 That just let us slide the outer sleeve from the extending barrel.
word image 21 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

With that off, we have enough room to take out the metal side braces, or guides, or whatever you want to call them. They’re certainly more than the inch-long guides we were expecting.

word image 22 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

They’re quite solid pieces of metal, going almost the length of the lens, so I suspect the provide some structural rigidity.

word image 23 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

If you’re getting the impression that this doesn’t look like your typical Canon lens, well, so were we. Those long guides went way down into the lens. So do several flexes and the flex layout is less direct than we usually see with Canon. Taking off the switch panel seemed like a good idea; it would hopefully let start tracing the flexes.

word image 24 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020 But it really only showed us a plug for the switches.
word image 25 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

We took off the inside of the lock-unlock barrel and its circular spring next, mostly because we could see how to do it.

word image 26 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

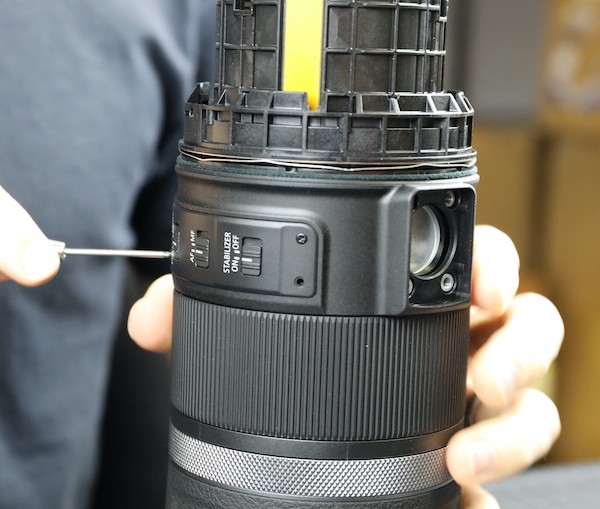

We can see the lock / unlock switch now. You can see the amber colored plastic of a barrel guide in the upper left part of the image. There’s a pretty big flex with about 20 traces diving straight down into the lens. That many traces probably means it’s going to split like tree branches, so tracing it out is going to be ultra important if we want this lens to work when we’re done.

word image 27 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Now we can see the set of screws that are obviously holding the mid barrel, so those come out next and the mid barrel should slide right off.

word image 28 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Well, the screws came right out, but the barrel went nowhere. We thought that taking out the set of guides (nice and sturdy, but a type of plastic we’ve not seen before) might help.

word image 29 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Taking those out let us extend the barrel fully, but did nothing else. It did expose a set of screws that looked like it held the extending barrel to the front barrel. The barrel-to- barrel junction is plastic to plastic, but numerous double screws hold it together, so it looks pretty sturdy.

word image 30 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

By the way, all the flexes are enthusiastically taped to the extending barrel. If you intend to enter this temple yourself, we suggest making heavy offerings of alcohol and heat to the Flex Gods or you’re gonna tear something you don’t want to tear.

word image 31 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

After taking out the junction screws, we offered up some 4-letter prayer words to the high priests of Canon engineering, because, well, nothing was coming apart, flexes dipped down into places we couldn’t reach and everything was at a standstill. So we put the screws back in and decided we’d try going in from the front.

The makeup ring, like the flexes, took a fair amount of time to spungy off. Canon seems to have upped their adhesive game a notch. We weren’t playing anymore. After alcohol we got out the heat gun and told the makeup ring, “you can come off or you can melt; your choice.” The makeup ring decided this wasn’t the hill to die on and eventually gave way.

word image 32 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020 With it out, we could remove a set of six screws underneath it.
word image 33 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Which let us take off the filter ring. (Note: this means filter ring replacement is quick, simple, and probably cheap if you bust it.)

word image 34 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Now we can see two sets of screws. The inner set seems to hold the front group in place, the outer set seems (I say seems because by this point we’ve lost trust in how anything seems) to hold on the focusing barrel.

word image 35 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Taking those screws out let us finally accomplish something; the entire external barrel comes off as one piece. Wish we’d known this two hours ago.

word image 36 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020
word image 37 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

A look inside shows us what was keeping the mid barrel from coming off and take the appropriate actions.

word image 38 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020
word image 39 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

And that there are some internal posts that prevented disassembling the outer barrel piece-by-piece. So next time we’ll know you have to remove the whole outer barrel before you start disassembling it.

word image 40 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

We also found that what looked like weird, random flex runs were because the flexes ran in a weird random way. They go all the way from the bayonet mount to the front of the lens, some of them turning around and going back down. It’s flex anarchy up in there. There’s probably some reason for it, but right now, 3 hours into an expected 1 hour disassembly, I think the reasoning took place after the engineers drank a lot of sake.

word image 41 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Below you see the SLAGI connector. As in “Seems Like A Good Idea” to run the flex all the way from the bayonet to the front of the lens, then connect it to another flex to run back down the lens.

word image 42 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

There are some very Nikon-like right angle bends, tape holding stuff down, and even (GASP!!) a bit of flex solder. That 20-something trace flex split into about half-dozen different traces that took about 3 right angle turns each.

word image 43 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

While the electronics don’t look like the usual Canon lens, the optics do. We can also see there are several robust eccentric adjustment colors on some of the mid-area lens groups. You can see one to the right of the white tape above; there’s another shown down below.

word image 44 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020 And yet another paired set towards the rear.
word image 45 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

With all this disassembled, we went back and finally took out the screws that seemed to hold the extending barrel in place and took them out.

word image 46 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

And then could slide it off.

word image 47 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

We can look down and see the IS unit now, still fairly far forward in the barrel.

word image 48 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

We examined the screws holding the front element in place; it’s neither shimmed for tilt, nor a centering adjustment (full disclosure: we have no desire to try centering a DO element), so we took those out.

word image 49 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020 This just removed a ring plate holding front element down.
word image 50 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

You can see the front group is a cemented pair now, just like the patent diagram suggests. If you look into the slots below the element, you can see (OK, we could see) that it was cemented in place. We had zero interest in breaking up that cement just to look down the barrel.

word image 51 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown
Lensrentals.com, 2020

Canon RF 600mm f/11 IS STM at Lensrentals.com starting at $37 for a 7 day rental

That’s All Folks

At this point, we were over 3 hours into disassembling this beast, and I had to leave in another hour or two. The front group was cemented in place, we weren’t going to uncement it. Further barrel disassembly was going to start with a LOT of flex tracing and unhooking and we just weren’t up for that today.

We’d found the electronic construction was complex for a Canon lens, or at least very different. The optical construction in the core has a very Canon look, with numerous optical adjustments/compensations using their new, large eccentric collars. I remain convinced this is because Canon is doing automated optical adjustment of subgroups during assembly. Nobody else is adjusting to this degree or in this manner.

So Aaron put the lens back together and I went off to vacation and to take some pictures to see if it reached my ‘acceptable for internet’ level of low expectations. Except, as I so clearly foreshadowed, the damn lens didn’t work. During reassembly, we buggered up the ‘barrel extended’ switch so the camera wouldn’t recognize the lens was ready to shoot.

Pride goeth before the fall, as they say. For the first time in our long history, we didn’t test the lens after reassembly, because ‘we got this’. So a week later, Aaron’s going to have to take this lens apart again so we can figure out what we buggered up.

So we got an AFLE on this one; Another Frigging Learning Experience. And what did we learn? That we don’t want to work on this lens. Life’s too short. When these break, they’re going to Canon service center. Except for this one, cause those Canon techs would enjoy fixing what we broke far too much; we’re never gonna tell them this happened.

Roger Cicala and Aaron Closz Lensrentals.com

August, 2020

word image 52 - Lensrentals.com: Canon RF 600mm f/11 IS STM Teardown

Author: Roger Cicala

I’m Roger and I am the founder of Lensrentals.com. Hailed as one of the optic nerds here, I enjoy shooting collimated light through 30X microscope objectives in my spare time. When I do take real pictures I like using something different: a Medium format, or Pentax K1, or a Sony RX1R.

Article and Images published with permission

Colorado

EOS M6 Mark II
Dec 16, 2013
53
152
"Internet acceptable images"? This is a damn modest standard.
I think the capabilities far surpass that modest standard. Here's some samples of the 600mm + the x1.4 extender. I was pretty impressed considering the weight of the lens:



melgross

EOS RP
Nov 2, 2016
691
452
Actually, I’ve now seen a number of reviews of this and the 800. After downloading a number of full size RAW images, I have to agree with the reviewers. These are very good lenses. Don’t believe some of the crap you may be reading. The images look short and contrasts. In fact, they’re surprisingly goo.

Canon made some smart moves here. By limiting these lenses to the one f11 aperture, they could optimize the results for just one, and not have to use extra elements in an effort to balance performance across several f stops. As for f11 being in diffraction. Well, not quite. F11 is pretty respectable for these lengths, and allows for very good imaging.

any criticism needs to allow for the size, weight and particularly the price. When considering the value, you need to look at whether anything is comparable, and you won’t find anything.


Tony Bennett

EOS M50
CR Pro
Mar 8, 2017
49
58
I bought the 800 and love it so far. It does exactly what I bought it for, capturing wildlife. It reaches a distance I couldn't afford to be in before. A 400, 600, 800 lens never made any sense for me and my business. They were too expensive and didn't help me make money. Even the 100-400 was always put on the back burner because I always found something else to spend the money on.

I knew the 800 wasn't for capturing sports indoor or capturing a wedding. The price was right for me.


jcfalconer

Falconer
Sep 13, 2014
28
12
Roger,
Maybe next time you should test the lens BEFORE you take it apart and put it back together! ;)
I hope we get to see some alligator photos soon.


SteveC

R5
CR Pro
Sep 3, 2019
2,046
1,902
Actually, I’ve now seen a number of reviews of this and the 800. After downloading a number of full size RAW images, I have to agree with the reviewers. These are very good lenses. Don’t believe some of the crap you may be reading. The images look short and contrasts. In fact, they’re surprisingly goo.

I'm going to assume you meant "good" not "goo" :D

Up front I'll say I have no interest in this lens...but it sounds like Canon decided to build a lens that does exactly ONE thing very well, and this is the result. For those who happen to need that one thing, it looks like a great deal.


Antono Refa

EOS R
Mar 26, 2014
1,212
362
I think the capabilities far surpass that modest standard.

Looking at best selling monitors in Amazon & web statistics I've found on Google, I would take Internet acceptable to be 2MP after crop. That's enough for a 4x6 print, the common size for several decades. I would expect every EF & RF lens to surpass this standard.

  • Haha
Reactions: SecureGSM

analoggrotto

EOS RP
Aug 27, 2016
277
161
600 is just under 15'. So if you need to shoot at 800mm a lot between 15' and 20', the 600 with 1.4x (840mm @ f/16) is pretty good.

My bad, I cited the MFD for 800mm.

It's definitely worth renting, where I usually just buy as far as I can afford and am automatically happy with practically everything Canon.


AlanF

Stay at home
CR Pro
Aug 16, 2012
7,623
7,968
600 is just under 15'. So if you need to shoot at 800mm a lot between 15' and 20', the 600 with 1.4x (840mm @ f/16) is pretty good.
Adding the 1.4xTC to the 600mm f/11 is pretty much a waste of time for increasing resolution. It pushes it too far in to the diffraction-limited region and adds lens aberration: see

  • Like
Reactions: Bert63 and tron

TMHKR

EOS 700D
Sep 1, 2018
68
85
31
Looking at best selling monitors in Amazon & web statistics I've found on Google, I would take Internet acceptable to be 2MP after crop. That's enough for a 4x6 print, the common size for several decades. I would expect every EF & RF lens to surpass this standard.
Vast majority of monitors today are 1920x1080 (~2.07 Mpx)
And if we assume one shoots 3:2 aspect, it also includes black borders on the sides.
In this case, image sharpness comes mainly from the lens resolving power.


highdesertmesa

R5 | 50R | Q2M
CR Pro
Apr 17, 2017
338
428
www.instagram.com
Adding the 1.4xTC to the 600mm f/11 is pretty much a waste of time for increasing resolution. It pushes it too far in to the diffraction-limited region and adds lens aberration: see

The 1.4x on my 600 resolves fairly well. See the link someone gave above to my post on FM Forums about the combo. I don’t doubt that the 100-500 with the 1.4x will be better (I should receive my copy Friday, fingers crossed), but on the R at least, the 600 + 1.4x is better than I expected.
