Patent: Expandable LCD Display for Canon Cameras

An odd patent for an expandable LCD display has appeared. You can expand the size of the LCD screen by moving the grip side of the camera.

Patent Publication No. 2015-154223 (Google Translated)

  • Published 2015.8.24
  • Filing date 2014.2.14
  • Rotatable operation unit
  • The first state is a rear LCD expands and contracts, the operating face of the operating unit faces behind
  • The second state, the rear LCD is extended, the operation surface of the operation portion faces to the right

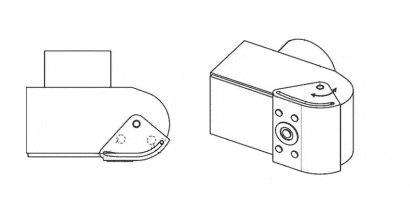

Keith over at Northlight images did the animated image showing the patent concept below.

bendy-lcd
