Patent: New Canon 0.82x Optical Viewfinder

This site contains affiliate links to products and services. We may receive a commission for purchases made through these links.

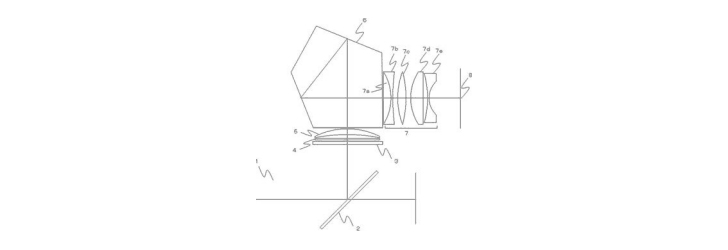

Canon has patented an 0.82x optical viewfinder for a DSLR. Canon uses a few different viewfinder magnifications for their DSLRs. For example, the EOS-1D X Mark II uses a 0.76x viewfinder, the EOS 5D Mark IV a 0.71x viewfinder and the EOS Rebel T6s a 0.82x viewfinder.

Patent Publication No. 2016-191760 (Google Translated)

  • Published 2016.11.10
  • Filing date 2015.3.31
  • Diopter -1 -3 +1
  • Focal length 61.30 58.73 64.32
  • Eye point 20.0 20.0 20.0
  • Magnification 0.82 0.85 0.78

If I had to guess, I’d say this is for an upcoming EOS Rebel DSLR.
