Patent: A new 16-35 f/2.8 or Faster Concept?

Improved Canon ultrawide for full frame?

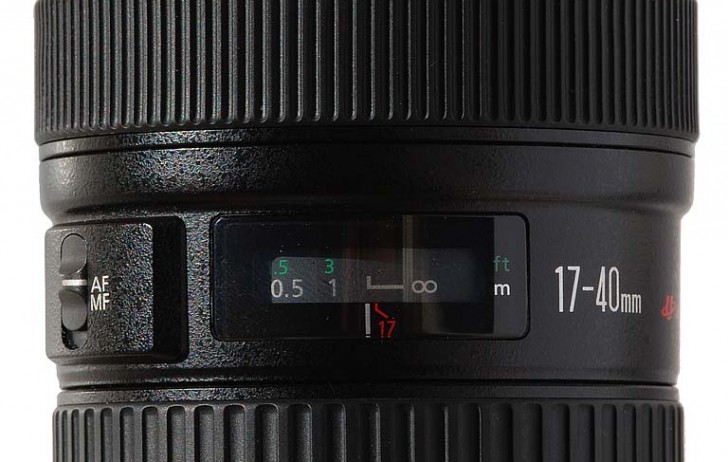

The world is waiting for Canon to release a top end performing ultra wide lens for full frame cameras. While I think the 17-40 f/4L is a bargain of a workhorse and the 16-35 f/2.8L II is a very solid performer, I think the line is still lacking that standout ultra wide zoom lens. I have heard numerous photographers say they'd pay “anything” for a top notch lens in that segment.

Below are 3 patented optical formulas for new ultrawide angle lenses for Canon.

A 16-35 f/2.8, a 17-35 f/2.8-4 and a 16-35 f/2-2.8. There seems to be a decent amount of f/2 patents appearing on zoom lenses from Canon, it could be time for such a lens to make it to market.

Patent Publication No. 2012-63568

• 2012.3.29 Release Date
• 2010.9.16 filing date

Example 2

• Zoom ratio 2.06
• 24.00 – – 33.95mm f = 16.48 focal length
• Fno 2.90 – 2.90 – 2.91
• 42.03 – – 32.51deg 52.70 angle of view.
• Image height 21.64mm
• 170.87 – – 172.62mm 178.10 full-length lens
• BF 40.00 – 48.45 – 61.71mm
• Lens Construction 12 group 17 sheets
• Three three aspherical surface
• 2 UD lens sheet

Example 4

• Zoom ratio 1.94
• 24.01 – – 33.98mm f = 17.51 ​​focal length
• Fno 2.91 – 3.21 – 3.86
• Image height 21.64mm
• 174.18 – – 175.92mm 178.81 full-length lens
• BF 41.60 – 48.49 – 60.70mm
• Lens Construction 12 group 17 sheets
• Three three aspherical surface
• 2 UD lens sheet

Example 6

1. Zoom ratio 2.06
2. 24.02 – – 33.99mm f = 16.49 focal length
3. Fno 2.15 – 2.46 – 2.94
4. 42.02 – – 32.48deg 52.69 angle of view.
5. Image height 21.64mm
6. 171.08 – – 172.88mm 176.23 full-length lens
7. BF 39.26 – 46.99 58.75mm
8. 18 sheets 13 group lens configuration
9. Three three aspherical surface
10. 2 UD lens sheet

Canon's patent

• 4-group zoom lens of a positive negative positive and negative
• Inner Focus
• Optimized so as to reduce the field curvature of the wide-angle side

Source: [EG]
