A quick comparison

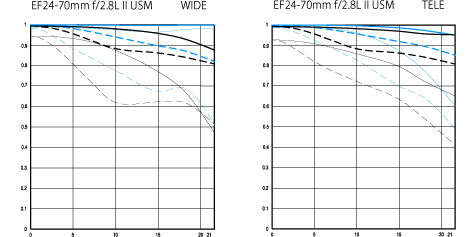

Below is a quick spec and MTF comparison between the Canon EF 24-70 f/2.8L Version 1 & Version 2.
We're still waiting for an official price on the lens. I do expect a big bump in price.
Version 1
Focal Length & Maximum Aperture | 24-70mm 1:2.8 |
Lens Construction | 16 elements in 13 groups |
Diagonal Angle of View | 84° – 34° |
Focus Adjustment | Front-focusing method |
Closest Focusing Distance | 0.38m/1.25 ft. |
Zoom System | Rotating Type |
Filter Size | 77mm |
Max. Diameter x Length, Weight | 3.3″ x 4.9″, 2.1 lbs. / 83.2mm x 123.5mm, 950g |

Version 2
Focal Length & Maximum Aperture | 24-70mm, 1:2.8 |
Lens Construction | 18 elements in 13 groups |
Diagonal Angle of View | 84° – 34° |
Focus Adjustment | Inner-focusing with USM |
Closest Focusing Distance | 0.38m/1.25 ft. |
Zoom System | Rotating Type |
Filter Size | 82mm |
Max. Diameter x Length, Weight | 3.5 x 4.4 in., 28.4 oz. / 88.5 x 113mm, 805g |
