It's finally here, after the long wait Canon has formally announced the Canon EOS R5 Mark II and it's almost everything we could have hoped for.
Pre-order the Canon EOS R5 Mark II
Before we get further into the specifications and features, hit the preorder now. Even though retailers have a lot of stock on hand ready to ship on the ship date in August expect that inventory to sell out quickly.
- Midwest Photo $4299
- B&H Photo $4299
- Adorama $4299
- Canon USA $4299
- Wex Photo £4499
- Foto Koch €4799
- Foto Erhardt €4799
- Camera Canada $5899
Specifications
| Type | Details |
|---|---|
| Type | Digital interchangeable lens mirrorless camera |
| Image Processor | DIGIC X (with DIGIC Accelerator co-processor) |
| Recording Media | Card 1: CFexpress memory card (Type B, CFexpress 2.0, VPG400 supported, up to 2 TB)Card 2: SDXC/SDHC/SD memory card (Compatible with UHS-II, Eye-Fi cards and MMC not supported) |
| Compatible Lenses | Canon RF lens group (including RF-S lenses)Using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses) |
| Lens Mount | Canon RF mount |
Image Sensor Specifications
| Type | Details |
|---|---|
| Type | Canon designed full-frame back-illuminated stacked CMOS sensor |
| Effective Pixels | Approx. 45 megapixels |
| Screen Size | Approx. 36.0 x 24.0 mm |
| Pixel Unit | Approx. 4.40 µm square |
| Total Pixels | Approx. 50.3 megapixels |
| Aspect Ratio | 3:2 (Horizontal: Vertical) |
| Color Filter System | RGB primary color filters |
| Low Pass Filter | Installed in front of the image sensor, non-detachable |
Dust Deletion Feature
| Type | Details |
|---|---|
| Self Cleaning Sensor Unit | Removes dust adhering to the low-pass filter.At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indicated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen).After manually activated cleaning, the camera will automatically restart (Power OFF to ON).When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected. |
| Dust Delete Data acquisition and appending | The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.Not available with RF-S/EF-S lenses. Setting may not be possible depending on the combination of functions (see the menu screen). |
| Manual cleaning | Manual cleaning (by hand) |
Recording System
| Type | Details |
|---|---|
| Recording Format | Compliant to Design rule for Camera File system 2.0 and Exif 2.31*. |
| Image Format | JPEG, HEIF, RAW / C-RAW / Dual Pixel RAW/ RAW burst (CR3), C-RAW (Canon original); Movies: ALL-I (Time-lapse video only), IPB (MP4) |
| Folder | When a card is inserted, the following folders are created automatically: DCIM, CRM, XFVC, and MISC folders |
| Folder Actions | Select folder, Create folder, Change folder name |
| Folder Name | Still Photos: DCF standards compliant. The following folder is created automatically in the DCIM folder. Default: EOSR5 (can be changed to any character string, 5 characters).Movies: XF-HEVC S / XF-AVC S format, REEL_**** in XFVC folder. A normal movie file (MP4) is saved. REEL_**** in CRM folder. A RAW movie file (CRM) is saved. In each REEL_**** folder: Up to 999 files can be saved in one folder. |
Movie Specifications
| Type | Details |
|---|---|
| Recording Size | RAW: 8192 x 4320 (Approx. 17:9)SRAW: 4096 x 2160 (Approx. 17:9)8K-DCI: 8192 x 4320 (Approx. 17:9)8K-UHD: 7680 x 4320 (16:9)4K-DCI: 4096 x 2160 (Approx. 17:9)4K-UHD: 3840 x 2160 (16:9)2K-UHD: 2048 x 1080 (Approx. 17:9)Full HD: 1920 x 1080 (16:9) |
| System Frequency | 59.94 Hz: NTSC / 50.00 Hz: PAL |
| Image Quality | High-quality 4K movies from 8K oversampling: 4K-D Fine, 4K-U FineHigh-quality 2K movies from 4K oversampling: 2K-D Fine, Full HD Fine |
| Movie Cropping | The recording format and movie recording size of the proxy movie are set automatically depending on the recording format and movie recording size of the main movie.Proxy movie recording format: XF-HEVC S YCC420 8bit 2K-D Standard LGOP Light LGOP |
| Recording Format | RAWXF-HEVC S YCC422 10 bitXF-HEVC S YCC420 10 bitXF-AVC S YCC422 10 bitXF-AVC S YCC420 8 bitMP4 |
| Bit Depth | RAW: 14 bits (14-bit A/D conversion), Canon originalJPEG: 8 bitsHEIF: 10 bits |
Still Photo Recording
| Type | Details |
|---|---|
| Image Size | RAW: RAW / C-RAWJPEG / HEIF: L / M/ S1 /S2 |
| Recording Pixel Count | L: Approx. 44.8MP (8192×5464)M: 24.0MP (6000×4000)S1: Approx. 11.6MP (4176×2784)S2: Approx. 3.8MP (2400×1600) |
| Aspect Ratio | 3:2 (Horizontal: Vertical) |
| Color Filter System | RGB primary color filters |
| Low Pass Filter | Installed in front of the image sensor, non-detachable |
| Image Type | JPEGHEIFRAWC-RAW |
| Bit Depth | JPEG: 8 bitsHEIF: 10 bitsRAW: 14 bits (14-bit A/D conversion), Canon original |
Gamma / Color Space
| Type | Details |
|---|---|
| HDR Shooting (PQ) | Color Space: Internal Recording: BT.709 / HDR PQ: BT.2020HDMI Output: BT.709 / BT.2020 (When connected to an HDR compatible monitor) |
| Video Signal Range | HDR Shooting (PQ): Internal Recording: 0-1023 Full RangeHDMI Output: 64-940 Narrow Range |
| RAW+JPEG/HEIF simultaneous recording | Simultaneous recording of any combination of RAW/C-RAW images and JPEG/HEIF images is supported. |
High Frame Rate Movie
| Type | Details |
|---|---|
| Disable / Enable | A movie recorded with [High Frame Rate: Enable] is played back at 29.97 fps (NTSC) / 25.00 fps (PAL) (played back in slow motion).No audio is recorded for the movie recorded with [High Frame Rate: Enable].Automatically stops if the maximum recording time per movie is exceeded.HDMI output during recording is at 59.94 fps (NTSC) / 50.00 fps (PAL).The time code counts up 8 sec. (at 239.76 / 200.00 fps) or 4 sec. (at 119.88 / 100.00 fps) per second of real time.Only exFAT-formatted cards can be used for recording (recording to FAT32-formatted cards is not possible). |
HDR Movie Mode
| Type | Details |
|---|---|
| Enable / Disable | An HDR movie is created with a single exposure. Unnatural afterimages do not occur when shooting a moving subject.HDR Movie Recording: Enable / DisableShadow compensation: Off / Standard / BrighterSaturation: -4 / -3 / -2 / -1 / 0 / 1 / 2 / 3 / 4Limitation of maximum brightness: Disable / 1000 nitsCan be set in conjunction with [HDR PQ shooting: PQ].Movie digital IS and high-frequency anti-flicker shooting are possible. |
Dual Shooting
| Type | Details |
|---|---|
| Still & Movie | Dual shooting (still & movie): On/OffWhen using LP-E6P Battery / DR-E6P Power AdapterDrive mode: High speed / Low speed / Single shootingHigh speed shooting: Max. approx. 7.5 shots/sec. (NTSC), Max. approx. 6.2 shots/sec. (PAL)Low speed shooting: Max. approx. 5.0 shots/sec. (NTSC), Max. approx. 4.1 shots/sec. (PAL)JPEG quality: 1–10 (settable in 10 levels)Movies: Main recording format: XF-AVC S YCC420 8 bit Movie recording size: Full HD (Normal), Frame rate: 29.97 (NTSC) / 25.00 (PAL) fps, Compression method / LGOPStill Photos: Recording pixel count: 7680×4320, Aspect ratio: 16:9, Recording image type: JPEG only |
Additional Specifications
| Type | Details |
|---|---|
| White Balance | Settings: Auto (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash, Custom (Custom WB), Color temperatureAuto White Balance Option between ambience priority and white priority settings, using SET buttonWhite Balance Shift: Blue/amber bias: +/-9 levels, Magenta/green bias: +/-9 levelsWB Bracketing available, up to +/-3 levels Blue/amber or magenta/green, via Quick Control Dial |
| Viewfinder | Type: OLED color electronic viewfinder; 0.5-inch, approx. 5.76 million dotsCoverage: Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 24mm eyepoint).Magnification / Angle of View: Approx. 0.76x / Approx. 35.5 degrees (with 50mm lens at infinity, -1 m-1)Eye Point: Approx. 24mm (at -1 m-1 from the eyepiece lens end)Dioptric Adjustment Range: Approx. -4.0 to + 2.0 m-1 (dpt)Viewfinder Information: Multiple indicators including maximum burst, focus bracketing, HDR shooting, etc. |
| Autofocus | Focus Method: Dual Pixel CMOS AFNumber of AF zones: Max. 1053 zones (90 x 65)Selectable Positions for AF Point: Max. 5850 positions (78 x 56)Focusing brightness range: EV –7.5 to 21Available AF Areas: Spot AF, 1-point AF, Expand AF area: Above/below/left/right, etc.Available Subject Detection: Auto, People, Animals, VehiclesEye Detection: Auto, Right Eye, Left Eye |
| Exposure Control | Metering Modes: Evaluative metering, Partial metering, Spot metering, Center-weighted average meteringMetering Range: EV -3 to 20Exposure Modes: A+ Scene Intelligent Auto, Fv Flexible-priority AE, P Program AE, etc.ISO Speed Range: Normal ISO 100–51200, Expanded L (equivalent to ISO 50), H (equivalent to ISO 102400)Exposure Compensation: User-set +/-3 stops in 1/3- or 1/2-stop incrementsAE Lock: Auto AE lock and User-set AE lock |
| Shutter | Type: Electronically controlled focal-plane shutterShutter Speeds: 1/8000th sec – 30 seconds, in 1/3 or 1/2 -step incrementsX-sync Speed: Mechanical Shutter: 1/200 sec., Elec. 1st-curtain: 1/250 sec.Shutter Release: Soft-touch electromagnetic releaseSelf Timer: 10-sec. delay, 2-sec. delay, Continuous |
| Image Stabilization | Still Photo IS: In-body IS operation can be selected when using a non-IS lens.Coordinated IS when used with Canon RF or RF-S lenses having optical Image Stabilization |
| Flash | Accessory Shoe: Canon Multi-function accessory shoeE-TTL balance: Ambience priority, standard, flash priorityFlash Exposure Compensation: +/-3 stops in 1/3- or 1/2-stop increments |
| HDR Shooting | HDR Shooting (HDR PQ): Disable / HDR PQStill Photo HDR PQ: HEIF 10 bit YCbCr 4:2:2 ITU-R BT.2100 (PQ)Movie HDR PQ: mp4 10 bit YCbCr 4:2:2 ITU-R BT.2100 (PQ) |
| Video Shooting | Maximum shooting Times: High-frame rate disabled: 100.00 fps or more Maximum: 2 hr. 00 min. 00 sec.File Format: Container format MP4, Bit depth 8 bit / 10 bit, Compression H.264 / MPEG-4 AVC, H.265 / HEVCColor sampling method: YCbCr 4:2:0 / YCbCr 4:2:2 |
Press Announcement
MELVILLE, N.Y., July 17, 2024 — Canon U.S.A., Inc., a leader in digital imaging solutions, today launched two new professional full-frame mirrorless cameras, the EOS R1 and EOS R5 Mark II. The EOS R1 camera is designed for both professional still photographers and video creators in a wide range of fields including sports, news reporting and high-end video production. The EOS R5 Mark II camera features improved video focused features for the advanced creators and real-time multi recognition tracking system for those who focus on still photography.
Canon EOS R1 Camera is “Ahead of the Game”
Canon’s EOS 1-series legacy continues with the unveiling of the flagship EOS R1 camera. This high-performance, reliable, and weather-resistance camera is designed for professionals in the photojournalism, sports and wildlife fields. Key features of the EOS R1 camera include:
- Back-illuminated stacked 24.2 megapixel full-frame sensor and new processing system for extremely fast reading
- Increased read-out speed, reducing “rolling shutter” distortions
- Still-image shooting speeds up to 40fps
- “Cross-type AF” imaging sensor for more positive focus on subjects with linear detail
- Strong video capabilities, up to 4K (also 6K RAW video options)
Canon EOS R5 Mark II Camera helps users “Master the Moment”
For the professional who demands high-quality still and video output, the EOS R5 Mark II camera is ready to deliver. Designed with performance and image quality at its core, the EOS R5 Mark II camera offers the fundamental elements in one package for sports/wildlife photographers, journalists/producers, video producers and visual creators. Key features of the EOS R5 Mark II camera include:
- Back-illuminated stacked 45 megapixel full-frame sensor and new processing system for extremely fast reading
- When compared to previous EOS R camera models, more advanced and powerful AF system including Eye Control AF and new subject tracking technologies
- Cinema EOS video features such as:
- Custom Picture color profile including Canon Log 2
- False Color Wave Form Monitor
- 4CH Audio with 24bit LPCM
- Pre-recording up to 5 seconds
Accessories for the EOS R5 Mark II camera were designed thoughtfully with the end-user in mind. There is a new, more powerful battery. The LP-E6P battery, when compared to previous battery versions, features higher continuous power and two-times the amperage. Optional battery grips were also thoughtfully designed, and there are three options:
- BG-R20– For vertical operability

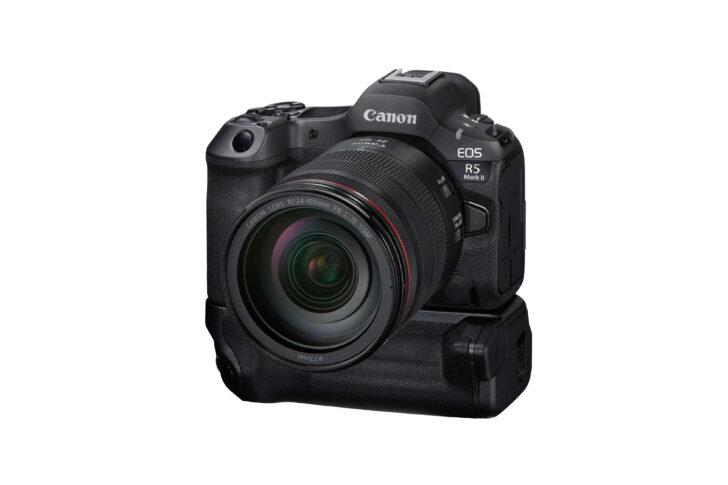

- BG-R20EP with Ethernet – Port enables high-speed wired communication
- CF-R20EP with Cooling Fan and Ethernet – Cooling fan helps maximize movie performance
Both cameras feature the new DIGIC Accelerator, which is an addition to the DIGIC X processor. The DIGIC Accelerator assists with deep learning processing which helps to quickly analyze large volumes of data and supports the next-gen AF system, Dual Pixel Intelligent AF. Dual Pixel Intelligent AF is based on Accelerated Capture and deep learning, allowing end-users to experience tracking advancements, such as body, joint and head area estimation and focus on people other than the main subject.
Price and Availability
The Canon EOS R1 camera is expected to be available in the Fall of 2024, for an estimated retail price of $6,299.00*. The Canon EOS R5 Mark II camera is expected to be available in August 2024, for an estimated retail price of $4,299.00* for the camera body only. The EOS R5 Mark II camera kit, which will include the RF24-105mm F4 L IS USM lens, will have an estimated retail price of $5,399.00*. The estimated retail prices for the optional battery grips are:
- BG-R20– $560.00*
- BG-R20EP – $750.00*
- CF-R20EP – $600.00*
For more information, please visit www.usa.canon.com.
