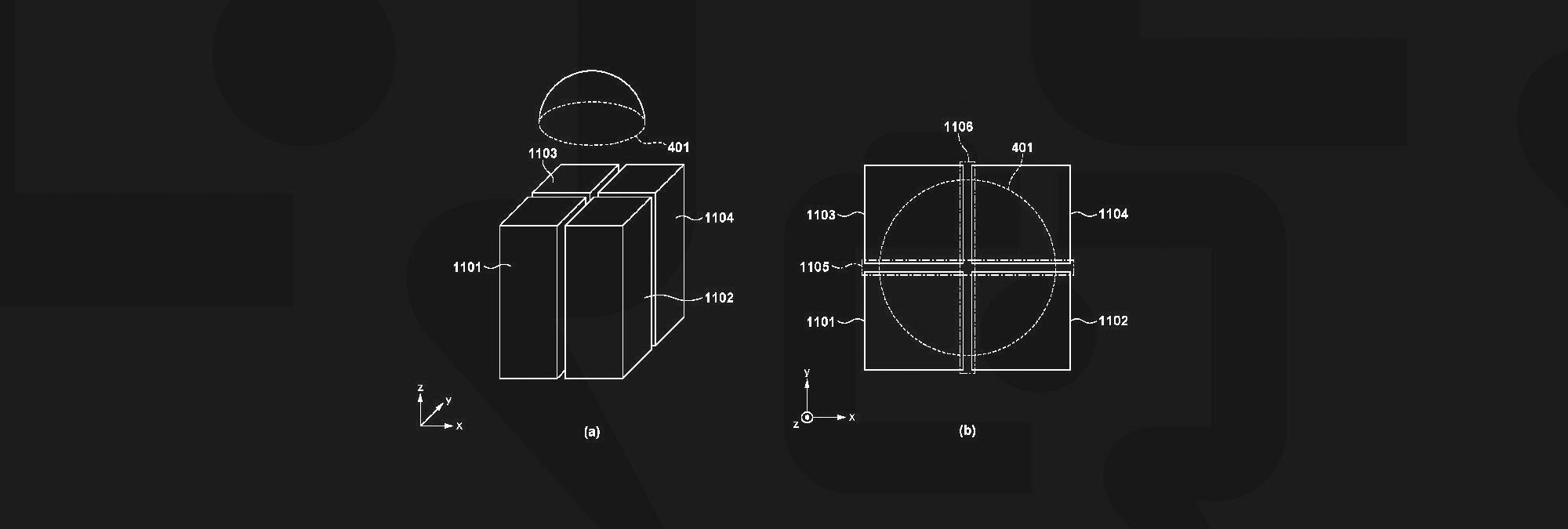

Today, two more patent applications discussing quad-pixel auto-focus sensors have been published by the Japan Patent Office.

The first patent application 2023-167634 deals with the fact that scan times will vary between row and column scanning, which could lead to inaccurate auto-focus performance.

Many conventional image sensors give priority to reading out signals in either the row direction or the column direction, and then move on to reading out the next row or column. For example, when reading out row by row and sequentially shifting the rows to be read out, the pixels in each row are read out at the same timing, but the readout timing for different rows becomes more different as the rows are separated. growing. For this reason, a pixel in which a plurality of photoelectric conversion units for one microlens is arranged in the row direction.

When pixels arranged in columns coexist, the following problems arise. In other words, in the row direction (main scanning direction), where signals can be read out from multiple photoelectric conversion units at close timings, and in the column direction (sub-scanning direction), where signals can be read out at different timings, In this case, focus detection accuracy decreases.

The present invention has been made in view of the above-mentioned problems, and is a main scanning focus detection method using an image plane phase difference method that utilizes a phase difference signal output from an image sensor in which pixels are arranged in a matrix.

The purpose is to make the performance of focus detection similar in the direction and the sub-scanning direction

In this next patent application 2023-167258 with the signal-to-noise ratio which can be different in the row and column directions.

The present invention has been made in view of the above problems, and when the S/N ratio of the focus detection signal is different in the row direction and the column direction in an image sensor in which pixels are arranged in rows and columns , The purpose is to make the performance of focus detection similar in the row direction and column direction

Every now and then I get some patents that I struggle to wrap my head around. Here's exhibit A. Now, first of all, all these problems only happen with a rolling shutter quad pixel autofocus sensor, so if Canon got their act together with a global shutter-based sensor, then they wouldn't be worrying about this ;)

That being said, things like having excess charge flow out of one sub-pixel and into another so they can use that to determine focus more accurately, is something I never thought possible. Perhaps that's where my brain sort of fried when I was writing this article.

As with the article earlier this week here, Canon is delving deep into what can possibly go wrong with a quad-pixel AF sensor (even though it should be noted that at least one of the patent applications mentioned an alternating horizontal and vertical dual-pixel arrangement as well). There's one other time that Canon put a lot of effort and making sure that it was bulletproof prior to implementation and that was IBIS. This is one of the reasons why when Canon's IBIS was released, it was essentially class-leading.

Where there is smoke, there's usually fire, and we're not seeing an uptick in quad-pixel AF sensor applications. Most notably they are describing larger full-frame sensors and finding ways around the problems that these large sensors inherently have.

While we haven't gotten word that the R1 will have a quad-pixel AF sensor, if I were a betting man, I'd certainly lay a few dollars down on that bet. Now the proviso, as with all patent applications, this is simply a look into what Canon is researching, the patent applications may never make it to patents and may not end up into actual products in the future.

Source: Japan Patent Office 2023-167258 and 2023-167634.
