In this patent application (2024-071267) Canon shows off a pretty awesome embodiment of a fabled Canon RF 14-20mm F2.0. We were rumored to see such a lens, but with Canon's supply issues, your guess is as good as mine if it's coming soon.

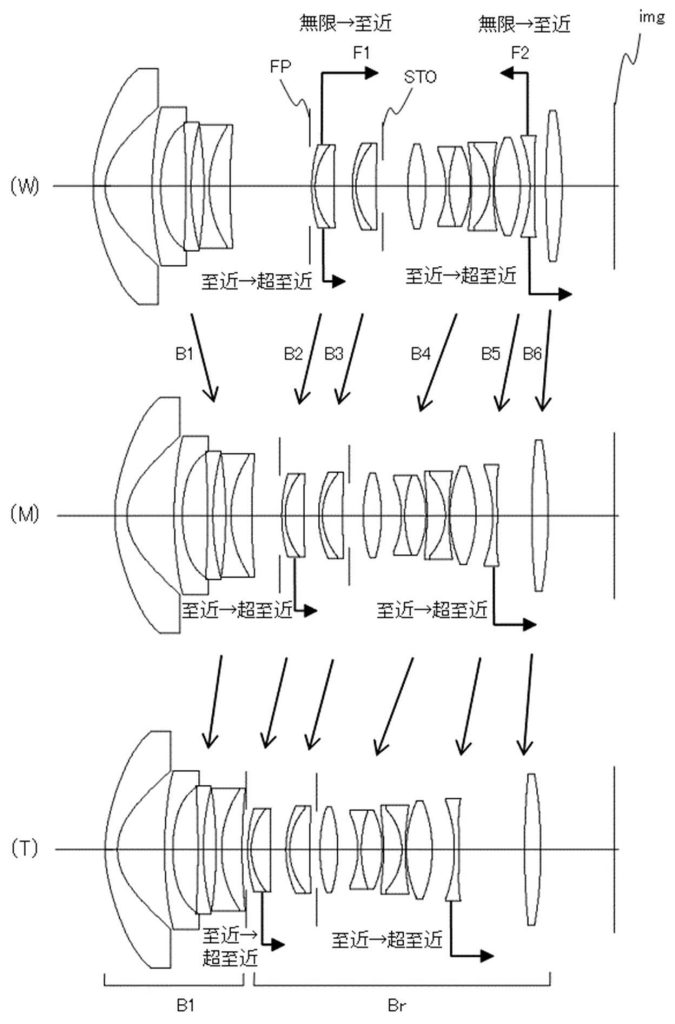

That all being said this looks like a pretty complete patent application even detailing the zoom group movement from wide to far, no image stretching, and nothing but Canon lens design expertise on display here.

Canon RF 14-20mm F2.0

              Wide-angle  Mid   Telephoto
Focal length    14.30    18.00    21.50
F-number         2.06     2.06     2.06
Half angle (°)  56.54    50.24    45.18
Image height    21.64    21.64    21.64
Lens length    148.04   141.94   139.46
BF              13.87    16.78    20.30

Canon RF 12-24mm F2.8-4.0

              Wide-angle  Mid   Telephoto
Focal length    11.30    18.00    23.80
F-number         2.93     3.49     4.09
Half angle (°)  62.42    50.24    42.27
Image height    21.64    21.64    21.64
Lens length    138.04   131.89   136.22
BF              13.87    19.38    22.14

As with all patent applications, this is a look into Canon's research and may or may not end up in a real product. That all being said, this lens would be in the kidney-selling category.

Source: Japan Patent Application 2024-071267
