    Patent: Canon RF 35-135mm f/2.8 and other fast zoom lenses

    By Canon RumorsDecember 10, 202069 Comments1 Min Read Canon Patents
    Share
    Facebook Twitter LinkedIn Pinterest Email

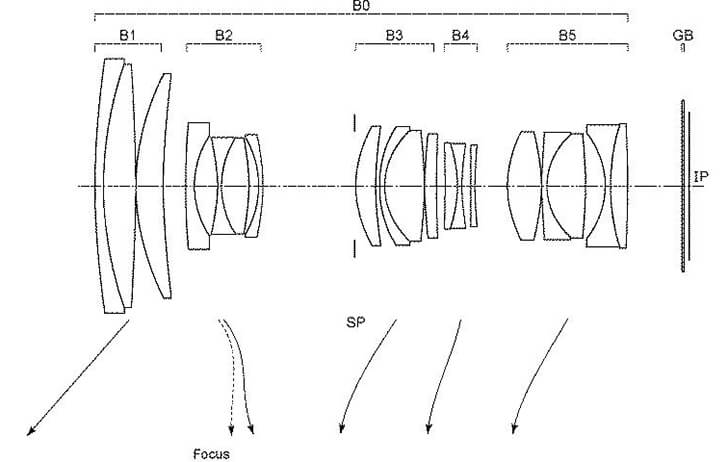

    Canon News has uncovered a patent showing optical formulas for fast RF zoom lenses, likely of the L variety. The purpose of the patent is to showcase a high-performance zoom lens design.

    Of the three embodiments in this patent, only the RF 35-135mm f/2.8 seems like a design that has a slight chance of becoming a consumer product.

    Canon RF 35-135mm f/2.8
    Focal Length 35.39mm 69.00mm 132.93mm
    F Number 2.85 2.85 2.85
    Half Angle of View 31.44° 17.41° 9.24°
    Image Height 21.64mm 21.64mm 21.64mm
    Total Lens Length 173.35mm 186.83mm 203.35mm
    Backfocus 17.95mm 27.32mm 34.01mm
    Canon RF 40-150mm f/2.8
    Focal Length 40.06mm 69.00mm 147.97mm
    F Number 2.85 2.85 2.85
    Half Angle of View 28.37° 17.41° 8.32°
    Image Height 21.64mm 21.64mm 21.64mm
    Total Lens Length 173.35mm 191.43mm 218.30mm
    Backfocus 17.98mm 26.04mm 38.94mm
    Canon RF 30-110mm f/2.8
    Focal Length 30.99mm 69.00mm 109.92mm
    F Number 2.85 2.85 2.85
    Half Angle of View 34.92° 17.41° 11.13°
    Image Height 21.64mm 21.64mm 21.64mm
    Total Lens Length 173.09mm 189.92mm 203.35mm
    Backfocus 17.95mm 28.25mm 33.97mm

    Go to discussion...

    patent rf 35-135 f/2.8L IS
