    Patent: 8-15mm fisheye zoom for mirrorless

    By Canon RumorsMarch 28, 201911 Comments1 Min Read Canon Patents
    Share
    Facebook Twitter LinkedIn Pinterest Email

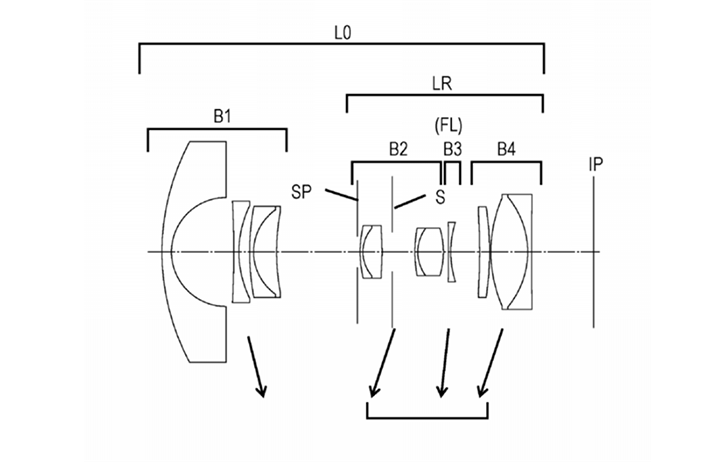

    An optical formula patent application for an 8-15mm fisheye zoom lens has appeared at the USPTO.

    The patent covers both the APS-C (EF-M) and full-frame (RF) mirrorless mounts as the backfocus for each embodiment is well shorter than the EF's 44mm.

    APS-C embodiment:

    Focal length: 5.30mm  – 9.51mm
    F-number: 3.50   3.50
    Angle of view: 181.00° 182.00°
    Image height: 7.50mm  13.50mm
    Total lens length: 77.28mm  – 69.52mm
    BF: 11.09mm  16.77mm

    Full-frame embodiment:

    Focal length: 8.01mm  15.30mm
    F-number: 3.78   4.60
    Angle of view: 177.30° – 183.10°
    Image height: 11.15mm  21.64mm
    Total lens length: 105.23mm – 103.57mm
    BF: 12.00mm  28.46mm

    Go to discussion...

    patent
    Share. Facebook Twitter Pinterest LinkedIn Tumblr Email
    Previous ArticleApple warehouse clearance at Adorama
    Next Article Patent: Canon in-body image stabilization

    Related Posts

    Patent: Canon is actively developing fast mirror lenses

    January 26, 2023

    Patent: Canon RF 14mm f/1.4L IS USM & Canon RF 24mm f/1.4L IS USM

    January 20, 2023

    Patent: Canon RF 11-24mm f/4L USM

    January 18, 2023

    Canon patents optical formula for an RF 200-500mm f/4L IS 1.4x

    December 16, 2022

    Patent: Canon RF 300mm f/2.8L IS 1.4x plus other supertelephoto optical designs

    October 4, 2022

    Patent: Canon takes the selfie stick to the next level

    September 27, 2022

    11 comments

    1. Maximilian
      March 28, 2019 at 6:08 pm
      EF 8-15mm 1:4L lenght: 83 mm
      This means the RF lens would be about 2 cm shorter on EOS R bodies (103.57 mm -20 mm=83.57 mm, same length, but w/o 20 mm adapter).
      Impressing.
      • Reply
      • 0
    2. KeithBreazeal
      March 28, 2019 at 7:03 pm
      OMG! Not quite fast enough for astro work, but worthy of a try.
      • Reply
      • 0
    3. Woody
      March 29, 2019 at 6:32 am
      I am keen on the EF-M 5.30-9.51mm f/3.5 fisheye lens as long as it's cheap and lightweight.
      • Reply
      • 0
    4. GMCPhotographics
      March 29, 2019 at 9:15 am
      EF 8-15mm 1:4L lenght: 83 mm
      This means the RF lens would be about 2 cm shorter on EOS R bodies (103.57 mm -20 mm=83.57 mm, same length, but w/o 20 mm adapter).
      Impressing.
      The current ef 8-15L isn't exactly large, in fact it's a tiny lens, not that size would be a deciding factor in the purchase of this lens. The 2cm shorter length is really just the lack of the adapter....It's nice to have a native Rf version for sure but there's not a lot of benefit here.
      • Reply
      • 0
    5. GMCPhotographics
      March 29, 2019 at 9:16 am
      OMG! Not quite fast enough for astro work, but worthy of a try.
      I've seen some great astro results from the EF version. While it's F4...it's super wide so a longer shutter speed can be used when compared to a 16mm focal length.
      • Reply
      • 0
    6. padam
      March 29, 2019 at 9:43 am
      The current ef 8-15L isn't exactly large, in fact it's a tiny lens, not that size would be a deciding factor in the purchase of this lens. The 2cm shorter length is really just the lack of the adapter....It's nice to have a native Rf version for sure but there's not a lot of benefit here.
      It's not about the size, it's about being ready for even higher resolution, more megapixels = more CA and bigger difference between central area and the edges. But of course the EF 8-15L is not bad by any means.
      • Reply
      • 0
    7. GMCPhotographics
      March 29, 2019 at 10:03 am
      It's not about the size, it's about being ready for even higher resolution, more megapixels = more CA and bigger difference between central area and the edges. But of course the EF 8-15L is not bad by any means.
      Yes I hear you and I'm aware of the lens design brief that Canon have announced for the Rf mount. Ironically, fisheye lenses suffer the least from retro focus design complications than any other type of wide lens. I'm surprised that Canon haven't announced a range of pancake primes for Rf mount yet...those would be a sweet addition to the Rf mount. It's a lens design very much suited to the benefits of the Mirror-less mount...more so than a fisheye zoom.
      • Reply
      • 0
    8. padam
      March 29, 2019 at 10:35 am
      Yes I hear you and I'm aware of the lens design brief that Canon have announced for the Rf mount. Ironically, fisheye lenses suffer the least from retro focus design complications than any other type of wide lens. I'm surprised that Canon haven't announced a range of pancake primes for Rf mount yet...those would be a sweet addition to the Rf mount. It's a lens design very much suited to the benefits of the Mirror-less mount...more so than a fisheye zoom.
      Looking at Fuji's recent 16mm f2.8 release (which is ~ a 24mm f4 equivalent) for 500$ it is clear that these smaller lenses wouldn't necessarily be very cheap or fast, so they might not be able sell a lot of them. Of course there is a handful of people wanting that for their RP, just not sure if they would be willing to pay the price for them. So maybe it is up to 3rd party manufacturers to crack the RF code, Samyang has a 24/2.8 and a 35/2.8 FE maybe those could be converted and produced for cheap.
      For now, releasing those zooms and two versions of the 85/1.2 should keep them busy for now, and I think a pricey but sharp RF 100-400/3.5-5.6L IS zoom would sell well and make some profit for them as well.
      • Reply
      • 0
    9. proutprout
      March 29, 2019 at 11:39 am
      Yes I hear you and I'm aware of the lens design brief that Canon have announced for the Rf mount. Ironically, fisheye lenses suffer the least from retro focus design complications than any other type of wide lens. I'm surprised that Canon haven't announced a range of pancake primes for Rf mount yet...those would be a sweet addition to the Rf mount. It's a lens design very much suited to the benefits of the Mirror-less mount...more so than a fisheye zoom.
      Canon scheduled pankake lenses it’s just that they plan to release a R pro-body first. So it’ll be ready, you just have to wait 8 to 11 years.
      • Reply
      • 0
    10. Maximilian
      March 29, 2019 at 7:03 pm
      The current ef 8-15L isn't exactly large, in fact it's a tiny lens, not that size would be a deciding factor ...
      And Canon managed to make it's optical formula even smaller! That's what I find impressing.

      ...It's nice to have a native Rf version for sure but there's not a lot of benefit here.
      It is not only nice to have a native RF lens it will be also interesting, what the different optical formula (still 2 cm shorter) will deliver.

      Interesting times.
      • Reply
      • 0
    11. shawnee photographer
      March 30, 2019 at 10:42 am
      I'm all about more RF lenses but I think I'll stick with my adapted ef 8-15. The adapter I got allows for drop in filters useful from 8-800mm which is a beautiful thing to me. Now the RF 16-35mm I am eagerly awaiting...
      • Reply
      • 0
