Patent: LED lights included with the pop-up flash on a DSLR

Canon Rumors
Posted onApr 14, 2019 at 11:02 AM
Updated onUpdated on Apr 14, 2019 at 11:04 AM

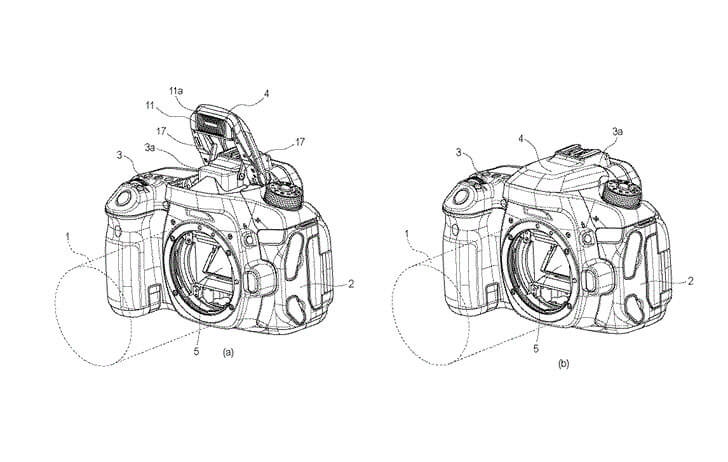

A patent geared to video shooters has appeared, and this one shows LED lights being included with the pop-up flash on a DSLR. The LED’s would be on continuously while shooting video, while the flash would be there for still shooting.

This sort of innovation could be good for vloggers and anyone that needs to light up anything close for video when you’re in a pinch.

Japan Patent Application 2019-056787

when using LED which carries out a continuous light as a light source of a lighting system, the measure against the heat which occurs from LED serves as problem. If the measure against heat is not performed sufficiently, LED deteriorates for a short time and there is a possibility that it may become impossible for light volume to be deteriorated or to switch on the light. If it is a lighting system removable to a camera like a Patent document 2, in order to radiate heat in the heat which occurs from LED, it is possible to provide a radiation substrate with a large area, but in the type which has a pop-up function, it is difficult to provide a radiation substrate with a large area near the LED.

This seems like a feature that has a good chance to make it into a future camera, but as with all patents, there is no guarantee.

Canon Rumors
View thread (8 replies)
Mt Spokane Photography

Mt Spokane Photography

I post too Much on Here!!
CR Pro
Mar 25, 2011
16,434
1,423
Cooling for LED's is a big issue, particularly if you want a reasonably powerful light.

The patent is basically a method for cooling a led light when its placed in the small flip up flash in the top of the camera. There are several features, water ducts, air vents, makes contact with heat sink when opened, etc.

  • Like
Reactions: Maximilian
Chaitanya

Chaitanya

EOS R
Jun 27, 2013
1,332
441
34
Pune
It can be a useful feature for macro shooters as well. But it shouldnt be in builtin flash as the flash is generally not in use if external triggers are mounted in hotshoe.

neuroanatomist

neuroanatomist

I post too Much on Here!!
CR Pro
Jul 21, 2010
24,649
2,181
Chaitanya said:
It can be a useful feature for macro shooters as well. But it shouldnt be in builtin flash as the flash is generally not in use if external triggers are mounted in hotshoe.
Click to expand...
I suspect the intended markets for this are the Rebel/xxxD/Mxx lines, i.e. users unlikely to hotshoe-mount a flash or trigger.

  • Like
Reactions: Chaitanya
Don Haines

Don Haines

Beware of cats with laser eyes!
Jun 4, 2012
8,265
1,927
Canada
Chaitanya said:
It can be a useful feature for macro shooters as well. But it shouldnt be in builtin flash as the flash is generally not in use if external triggers are mounted in hotshoe.
Click to expand...
I’m not sure that I understand.....

The pop up flash is normally just a flash, this one would have video lights as well.

If you are triggering an external flash with this new pop up, it should still work.
If you are using external video lights, it should still work.
If you are using a hotshot flash, it won’t pop up, but you were not going to use it anyway
If you are using a hotshot video light, same thing....

How is this different than any other pop up flash for usability?

  • Like
Reactions: FramerMCB
R

rrcphoto

EOS R6
Jun 20, 2013
2,505
147
Don Haines said:
I’m not sure that I understand.....

The pop up flash is normally just a flash, this one would have video lights as well.

If you are triggering an external flash with this new pop up, it should still work.
If you are using external video lights, it should still work.
If you are using a hotshot flash, it won’t pop up, but you were not going to use it anyway
If you are using a hotshot video light, same thing....

How is this different than any other pop up flash for usability?
Click to expand...
I'm guessing, but maybe it won't' scare bugs as much as a flash?

Chaitanya

Chaitanya

EOS R
Jun 27, 2013
1,332
441
34
Pune
neuroanatomist said:
I suspect the intended markets for this are the Rebel/xxxD/Mxx lines, i.e. users unlikely to hotshoe-mount a flash or trigger.
Click to expand...
I used to use external flash(430ex II with cheap radio trigger and reciecer bought from ebay) on my 500D. I know many herpers and butterfliers who use xx0D with macros(180mm, 100/105/90mm and MP-E 65) and external flash(on body or off shoe with triggers). Its very convinient to carry one of these bodies for long trips compared to x0D and 7D series of bodies.

M

magarity

EOS RP
CR Pro
Feb 14, 2017
272
187
It sounds like this comes down to deciding on how thick they're willing to make the part that pops up and correspondingly how bulky it looks when closed.
