SmallRig has launched a brand new version of their extremely popular VB99 Pro Mini V mount battery. You can preorder now for only $279. Shipping is expected to start on December 26, 2023.

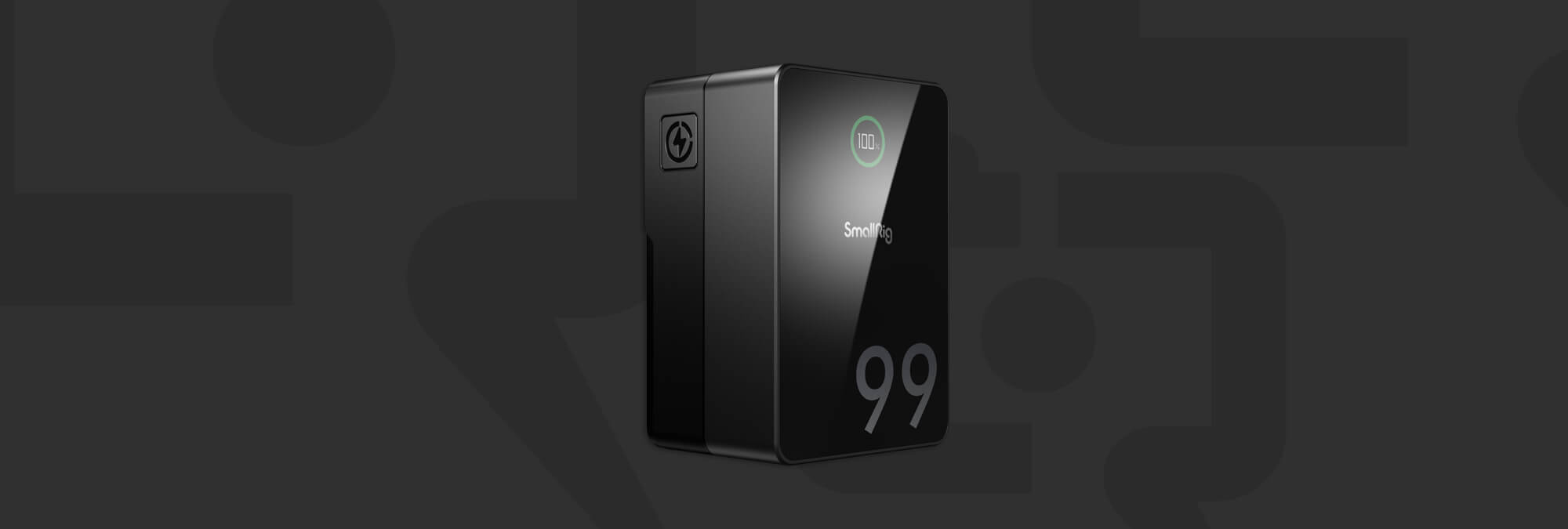

SmallRig VB99 Pro mini V Mount Battery 4292
- BMS intelligent chip supports 100W (Max.) fast charging, fully charged in 2.5 hours;
- Imported top-class large-capacity LG battery cell endures repeated charging and discharging, safe and stable;
- Highly integrated design, about 70% the size of a normal V-mount battery, lighter and more portable;
- Interfaces: 2 USB-C, 1 D-Tap, 1 USB-A, 1 8V-OUT, 1 12V-OUT, each with a shunt design to allow simultaneous USB-C and USB-A fast charging;
- Aluminum alloy and fireproof PC, sturdy and drop-proof;
- Durable, cratch-resistant PC and acrylic cover on the front;
- TFT color screen displays status clearly and accurately.
SmallRig VB99 Pro mini V Mount Battery 4292 $279
SmallRig VB99 Pro mini V Mount Battery 4292 is about 70% the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / PPS etc.), bi-directional 100W (Max.) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Such interfaces as D-tap / USB-C / USB-A / 8V-OUT / 12V-OUT / BP electrode are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / LED video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and a TFT digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which is rechargeable and stable, and meets MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards. Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC and features durable, cratch-resistant PC and acrylic cover on the front, with a TFT color screen displaying battery status clearly and accurately. Overall, this item is safe and powerful enough for you to capture every moment without burden!
Compatibility
MILC, camcorder, camera, monitor, follow focus, image transmitter, LED video light, cell phone, tablet, laptop, etc.
Certification: FCC CE RoHS ISED RCM PSE KC
In the Box:
VB99 Pro mini V Mount Battery x 1
240W USB-C Charging Cable x 1
User Manual x 1
Specifications
| Items | Specifications |
| Material(s): | Aluminum Alloy, Fireproof PC |
| Capacity | 14.54V 6.8Ah 98.872Wh |
| Rated Power | 100W |
| BP / D-tap Input | 8A (Max.) |
| BP / D-Tap Output | 14.8V / 14A (Max.) |
| USB-A Output QC2.0 / QC3.0 | 5V / 3A, 9V / 3A, 12V / 2.5A（Max.） |
| USB-C1 Input / Output Input / Output: 100W (Max.) PD3.0 / QC2.0 / QC3.0 / PPS | 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.) |
| USB-C2 Output Output: 100W (Max.) PD3.0 / QC2.0 / QC3.0 / PPS | 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.) |
| 8V-OUT | 8V / 3A (Max.) |
| 12V-OUT | 12V / 3A (Max.) |
| Cut-off Voltage | 11V |
| Optional Charging Method | BP charger、16.8V D-TAP charger、 USB-C charger, such as GaN charger with PD fast charging tech (up to 100W) |
A really clean build, in my opinion.
Needless to say, once you add a larger monitor and mic it becomes bigger, but this partly-built rig using just the cage, battery plate, and V-Mount is pretty neat.
