    Canon Patent Application: Another RF Z lens

    By Updated:20 Comments Canon Patents 2 Mins Read

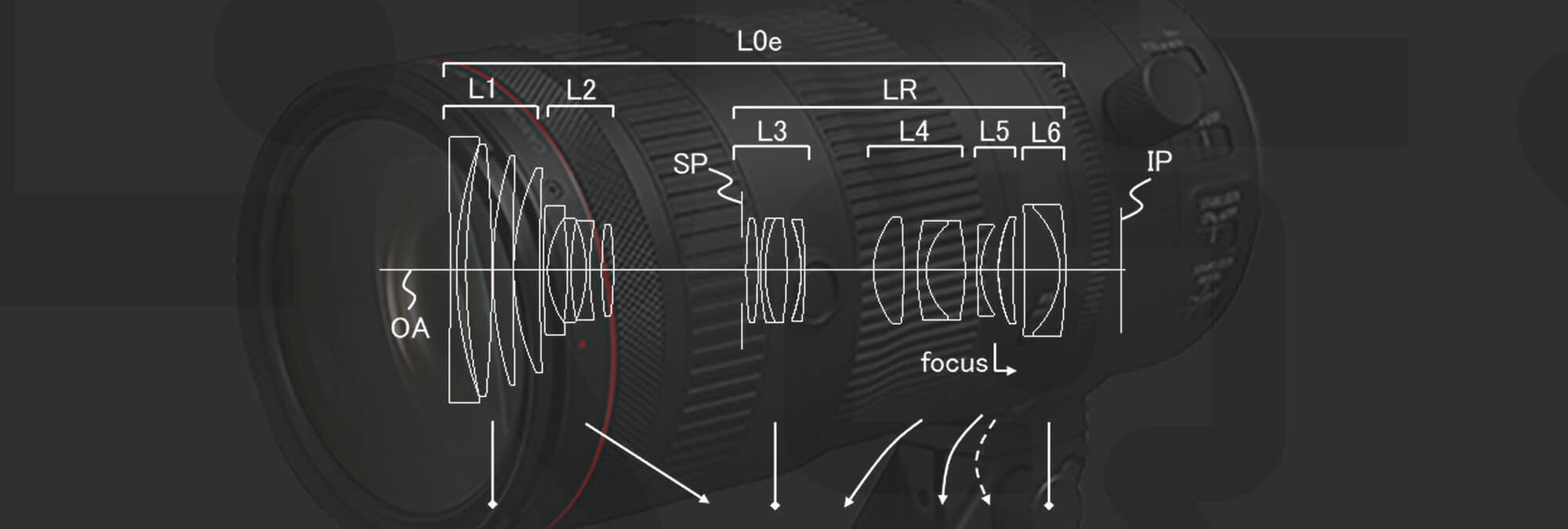

    In this patent application (2024-025100), Canon describes the optical formulas of some pretty impressive zoom lenses.

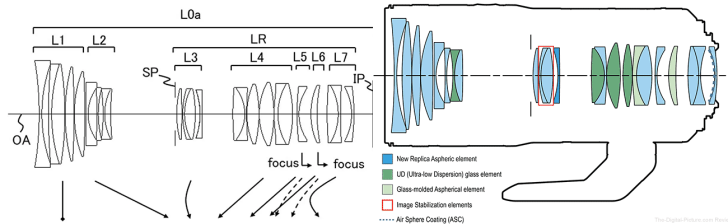

    In this patent, we see the impressive Canon RF 24-105 F2.8L IS USM Z embodiment, and it's just as impressive as the lens is in real life.

    So we know that at least one zoom in this patent application became a reality. But it's the other zoom that is especially interesting to me in this embodiment. The 15-60mm would certainly have me selling a kidney to acquire it, as I can pretty much state that this is around 80% of my images are captured in this range on a crop camera. The image height isn't given, but the half angle of view of this lens makes it an APS-C lens, and not a full-frame lens. The half angle of view for a full frame of a 15mm wide angle would be around 58 degrees. This translates into a 24-100mm lens (approximately) for APS-C shooters.

    Canon RF-S 15-60mm F2.8 IS USM Z

                     Wide-Angle Intermediate Telephoto
Focal Length         15.45     30.00       58.20
F-Number              2.90      2.90        2.90
Half Angle of View   41.48     24.48       13.21
Lens Length         143.99    143.99      143.99
Back Focus           11.90     11.90       11.90

    As with all patent applications, this is a look into Canon's research and may not be an embodiment that makes it into an additional product. But this gives us a look into Canon's research.

    Japan Patent Application 2024-025100
