    Canon Patent Application: New Composite element for an RF 50mm F1.4

    By Updated:26 Comments2 Mins Read Canon Patents
    JPA 506039231 i 000011 1536x518 - Canon Patent Application: New Composite element for an RF 50mm F1.4

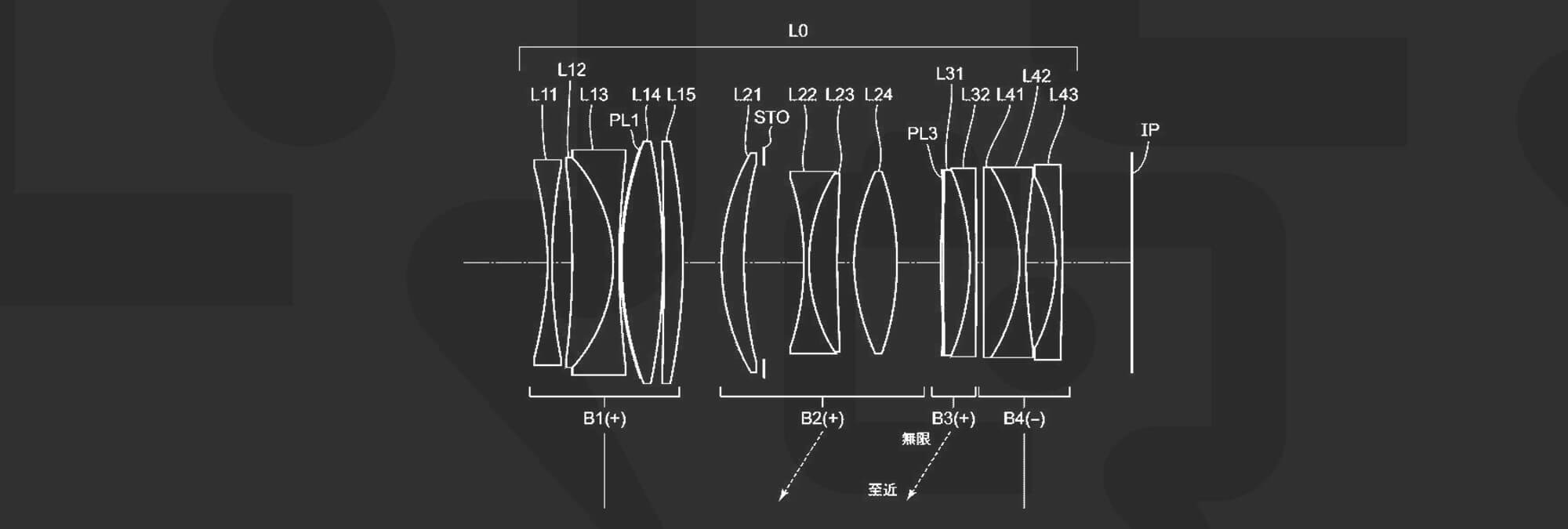

    In this patent application (JP2024-039231), Canon discusses a new element composition, which is a resin element attached to a glass element to form a unique composite element. This element's goal is to help reduce lens size and also decrease aberrations. They have included some very interesting embodiments including one that has reached near-mythical proportions in the Canon community – the 50mm F1.4.

    Dare to dream 50mm F1.4 fans. Since Peanuts is copyrighted until 2070 (really?), you'll just have to imagine poor Charlie Brown once again trying to kick the football from Lucy. But it does actually look like a serious optical design, so here's hoping.

    The patent discusses three different materials however it doesn't seem to give any real details on what the resin is composed of. However, anything that makes lenses better is a good thing.

    Canon RF-S 15-45mm F4.0

    Focal length        15.30   30.00   45.00
F value              4.12    4.12    4.12
Half angle of view  41.68   24.91   16.51
Real image height   11.60   13.65   13.65
Total length        83.50   83.50   83.50
BF                  17.67   17.67   17.67

    Canon RF 24-70mm F4.0

    focal length        24.60   35.00   67.90
F value              4.12    4.12    4.12
Half angle of view  41.33   31.72   17.67
Real image height   19.39   21.41   21.64
Total length       108.50  114.20  142.13
BF                  20.95   29.00   50.49

    Canon RF 50mm F1.4

    Focal length        50.03
F value              1.44
Half angle of view  23.39
Real image height   21.64
Total length       113.51
BF                  13.51

    Canon RF 28-200mm F2.8-5.6

    Focal Length         28.40   85.00  197.00
F Number              2.90    4.76    5.70
Half Angle of View   37.30   14.28    6.27
Actual Image Height  18.98   21.64   21.64
Total Length        151.14  179.02  220.00
BF                   13.50   27.15   47.04

    Japan Patent Application 2024-039231
