It is indeed basically free to add one into the silicon, but you have to know what you're doing and actually talk to the software people. During my time at a silicon vendor we had multiple SoCs that had sensors on silicon. But all mention of that was scrubbed from datasheets and software, since a lot of mistakes were made:
  • putting it in the 'wrong' place on the die, next to a coprocessor that consumes a lot of power
  • playing with the sensor design so readings between different revisions don't match
  • forgetting to document the gates that disable it by default
And more. This was because at design time there was no requirement for a temperature sensor. These SoCs were considered 'low power', so thermal management wasn't strictly needed.
I can totally see this happening but 'low power' is also relative. When Canon designed the Digic X with its design power (I'd estimate it somewhere around 5W based on power consumption), they must have realized very early on that thermals will be challenging. In this case, engineers tend to put more sensors in the package and make sure that software engineers can implement their thermal models to track temperature as well as possible.

Also, there's a big difference between these 2 sentences:
  1. "There are 3 sensors, which we use in the algorithm"
  2. "There are 3 sensors which we use in the algorithm"
I don't think we can be certain that there are only 3 sensors in the camera, just that Canon UK told Gordon that 3 are being used. And I suspect a lot of details are getting lost in the chain from Canon.jp engineer → Canon.jp marketing → Canon.uk marketing → Gordon.
Someone else suggested that "3" may refer to the discrete sensors. I could believe that they have 3 discrete sensors in addition to anywhere between 2-10+ integrated ones...

  • Like
Reactions: Stu_bert

Jethro

EOS R
CR Pro
Jul 14, 2018
439
324
Really excellent review! Comprehensive and honest (I liked his separate review of the photography mode as well). Interesting about the enhanced ability to do 30 second clips with the firmware upgrade.


canonnews

EOS RP
CR Pro
Dec 27, 2017
753
1,203
Canada
www.canonnews.com
No, a microchip runs tens or more degrees hotter than its ambient, especially when doing something like transcoding 8K.
the CPU isn't encoding. they would have a descreet h.265 encoder DSP built into DIGIC X for that. h.265 is actually easier to encode than it is to decode. and RAW of course is even easier.

we have no idea what temperatures canon is worried about but with three or more sensors, it's more than just core temp.

Yes but that was in a air con appt, with temp probably below the Canon rating of 23 degrees. So the fan would have been blowing cool air, and the Aircon unit when I used that, was at 18 deg and on turbo mode :) :)

We need to see if others find similar values, in case somehow I messed up, but I did try and keep everything consisent

I'm gonna do some more tests tomorrow to see if it holds true.

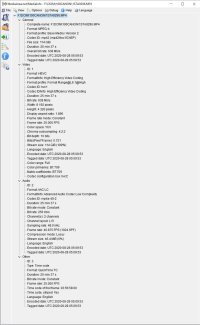

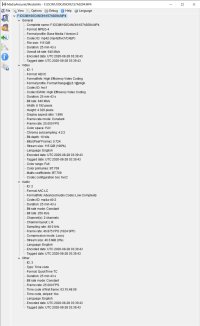

I did another quick test today (same settings video & camera - 8K25 etc)
