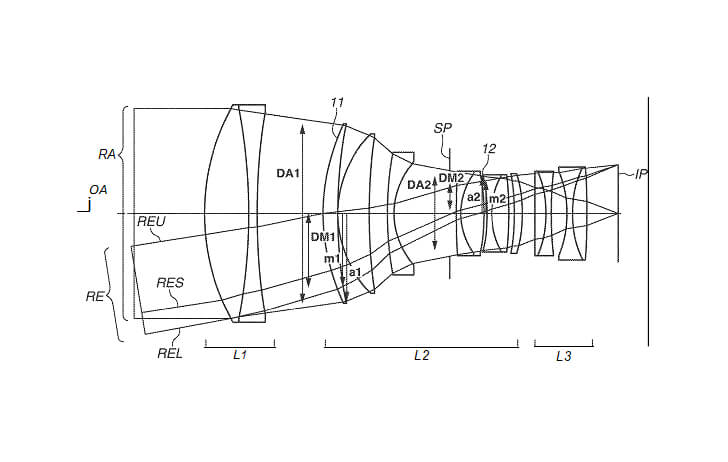

    Keith at Northlight has uncovered a patent showing optical formulas for three fast prime lenses, most notably a Canon RF 130mm f/1.4L USM. On my roadmap for Canon, we do have an RF 135mm f/1.4L USM listed, so this patent could potentially be related.

    Canon RF 130mm f/1.4L USM

    • Focal length: 131.00mm
    • F-number: 1.41
    • Angle of view: 9.38°
    • Image height: 21.64mm
    • Lens length: 182.28mm
    • Backfocus: 13.87mm

    The following optical design has a really strange backfocus distance of 54,12mm according to the patent literature.

    Canon 135mm f/2L USM

    • Focal length: 133.50mm
    • F-number: 2.06
    • Angle of view: 9.21°
    • Image height: 21.64mm
    • Lens length: 155.12mm
    • Backfocus: 54.12mm

    The following optical design also has an unusual backfocus distance.

    Canon 24mm f/1.4L USM

    • Focal length: 24.55mm
    • F-nurnber: 1.45
    • Angle of view: 41.39°
    • Image height: 21.64mm
    • Lens length: 119.13mm
    • Backfocus: 38.01mm
