    Gerald Undone completes exhaustive record time testing on the Canon EOS R5 and Canon EOS R6

    By Canon RumorsAugust 1, 2020Updated:August 1, 2020264 Comments1 Min Read Canon EOS R
    Share
    Facebook Twitter LinkedIn Pinterest Email

    Gerald Undone, one of the premier camera tech YouTubers has completed an exhaustive record time test on the Canon EOS R5 and Canon EOS R6.

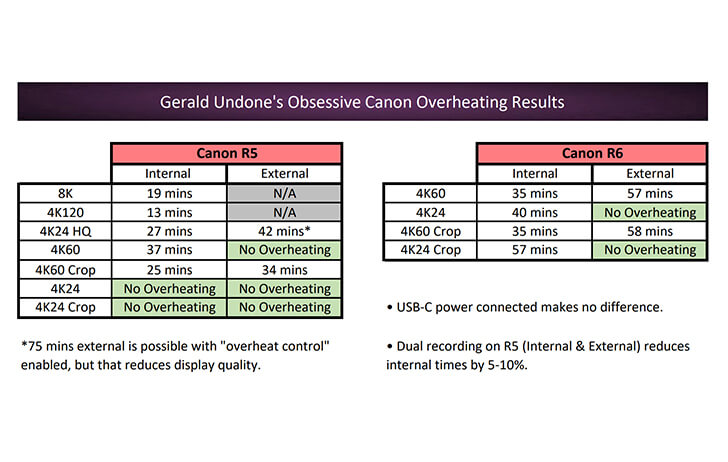

    He hopes to have the full video up on Monday or Tuesday for your viewing pleasure, but for now, he has provided us with a handy chart detailing his methodology, record times in all modes both internally and externally.

    All of these tests were done indoors in a climate-controlled environment.

    As for recovery time, Gerald has this to say:

    It should also be noted that these times are from a 2 hour cooldown period. You will only get these durations once, then they're significantly cut down. Takes about 1 hour for 60% recovery and 2 hours for full recovery.

    It should also be noted that these times are from a 2 hour cooldown period. You will only get these durations once, then they're significantly cut down. Takes about 1 hour for 60% recovery and 2 hours for full recovery.

    — Gerald Undone (@GeraldUndone) August 1, 2020

    geraldundoneheattestbig 728x331 - Gerald Undone completes exhaustive record time testing on the Canon EOS R5 and Canon EOS R6

    Go to discussion...

    EOS R5 EOS R6
    Share. Facebook Twitter Pinterest LinkedIn Tumblr Email
    Previous ArticleJust a reminder: Canon Rumors has launched a Discord server
    Next Article Stock Notice: Canon EOS R5 in stock at Canon USA Store

    Related Posts

    Canon releases firmware v1.8.1 for the Canon EOS R6

    March 14, 2023

    Is Pixel-Shift coming to the Canon EOS R5?

    March 10, 2023

    Canon to release major firmware update for the Canon EOS R5

    March 6, 2023

    Canon EOS R5 Mark II to arrive before EOS R1? [CR2]

    February 20, 2023

    Canon EOS R8 production to start at 11,000 units a month

    February 20, 2023

    After almost 30 years, Canon is ending the “Kiss” branding in Japan

    February 9, 2023

    264 comments

    1. Chaitanya
      August 1, 2020 at 3:48 pm
      Depending on weather, that 4k120 can be really useful for recording behaviour of animals which lasts couple of seconds on another note living in India other than Dec-Jan dont see R5 being a useful tool in field for video above 4k30.
      • Reply
      • 0
    2. Starting out EOS R
      August 1, 2020 at 3:52 pm
      I'm getting a bit of information overload at the moment with all the vlogs, comments and reviews going on for the R5 & R6.

      It's great that people like Gerald Undone do things like this and I'm sure people looking to decide to buy may find it useful. However, in the real world where most people don't use these camera's in temperature controlled environments, only your own experience matters.

      I suppose the headline stats along with those provided by Canon give you an initial idea to base a decision on but when all said and done, only you and you alone know what kind of shooting you do, stills, video, stills and video, video at normal or 8k etc etc. so maybe it's time we stop hanging on everyone's review and make our own minds up??

      That's certainly what I did and now I have the R5, I'll decide on my own experience. :)
      • Reply
      • 0
    3. mppix
      August 1, 2020 at 4:33 pm
      The observed cooldown periods suggest that the heat is not conducted effectively away from the internal hot spots. This can be either by design or due to out-of-spec thermal interfaces.
      2h cooldown really seems excessive.... and can likely be improved..
      • Reply
      • 0
    4. sanj
      August 1, 2020 at 4:34 pm
      Unpleasant. Less than 25 mins indicates an inferior product. To me.
      • Reply
      • 0
    5. adigoks
      August 1, 2020 at 4:43 pm
      canon user should be thankful there is someone like gerald undone. he did such a worthy and full of information test.

      this also conclude that canon is very conservative in term of their camera operation temparature .
      • Reply
      • 0
    6. padam
      August 1, 2020 at 4:50 pm
      These figures all seem fine to me (4K normal quality is probably good enough for many already), especially with the external recorder.
      It is the cooldown period, which is the real problem, maybe they can make tweak that a little bit with software.

      If that Tilta cooling kit or something like that actually works in practise (even though it looks quite ridiculous and probably quite loud when it works) they might sell quite a few of those.

      We might not see another 8K camera with a great IBIS, etc. like this any time soon, it is a unique product, no matter how flawed it is being presumed, people expected it to cost a lot more initially (and I expected the rolling shutter to be much worse than it is, although curious to see the measurements).
      • Reply
      • 0
    7. mb66energy
      August 1, 2020 at 4:54 pm
      Would be helpful to see some data of other cameras with same frame rates, resolutions, data rates ...
      • Reply
      • 0
    8. sulla
      August 1, 2020 at 5:02 pm
      R5: no overheating in [email protected] (external recording) looks pretty damn good to me. 19 mins 8K in one take also seems not tooo bad to me.

      I wonder if the camera lay flat on a table with no convection from underneath or if it was mounted "free" on a tripod. Also, Canon recommends an external fan during recording, that might also greatly improve cooling.
      • Reply
      • 0
    9. NiktoCan
      August 1, 2020 at 5:03 pm
      Just received my EOS R5 this morning - plan on doing extensive testing as well and will share any results that differ too much from these.
      • Reply
      • 0
    10. Viggo
      August 1, 2020 at 5:07 pm
      I own a FullHD tv from 2012, it was a $2500 top of the line 55” from Samsung.
      I last night finished my binge watching the Netflix series “DARK”, which is amazing btw, and I sat there through 3 seasons completely amazed by how ridiculously sharp and detailed the video quality is. It’s not “pretty decent for an old tv” or “fine for 1080”, it’s amazingly detailed and sharp.

      I always drop by the stores to see what’s new in 4K and 8K and the only amazing new thing is how detailed the 8K is at a viewing distance of 10 cm. I can’t see the need for 4K and 8K. Yes cropping bla bla, but output? I rather have superb 1080 than iPhone 4K.
      • Reply
      • 0
    11. Tom W
      August 1, 2020 at 5:08 pm
      Is it the sensor that heats up, or a processor that is doing it? The sensor, since it has movement to deal with IBIS, would be difficult to cool other than by the air around it. Mounting it solidly to the magnesium frame would cool it, but it would then be unable to move for stabilization.

      The processor, on the other hand, could use part of the magnesium housing as a heat sink if designed as such, even if the heat transfer is through a conductive heat sink type of thing. If the heat is adequately transferred to the back or bottom of the camera body, then some type of external cooling would be effective.
      • Reply
      • 0
    12. FS670ES
      August 1, 2020 at 5:15 pm
      Damn, I was ready to get R6 but I canceled my preorder. If it builds up heat even during stills shooting and recovery times are so high then sorry but I don't see it to work in hybrid shooting stills / video (50%/50%) in temperature of about 30 Celsius degrees. I am talking about amateur use, short periods of hybrid usage for 2-3 hour walks. It's a real pity as everything else in R6 is almost perfect.
      • Reply
      • 0
    13. sulla
      August 1, 2020 at 5:17 pm
      If it builds up heat even during stills shooting
      Why should it heat up in stills shooting?
      • Reply
      • 0
    14. FS670ES
      August 1, 2020 at 5:19 pm
      Why should it heat up in stills shooting?
      Already seen couple of reports. Even Gerald mentions that only setting up camera for shoot and then pressing record...the times where already lower.
      • Reply
      • 0
    15. KrisK
      August 1, 2020 at 5:21 pm
      I'm getting a bit of information overload at the moment with all the vlogs, comments and reviews going on for the R5 & R6.

      It's great that people like Gerald Undone do things like this and I'm sure people looking to decide to buy may find it useful. However, in the real world where most people don't use these camera's in temperature controlled environments, only your own experience matters.

      I suppose the headline stats along with those provided by Canon give you an initial idea to base a decision on but when all said and done, only you and you alone know what kind of shooting you do, stills, video, stills and video, video at normal or 8k etc etc. so maybe it's time we stop hanging on everyone's review and make out own minds up??

      That's certainly what I did and now I have the R5, I'll decide on my own experience. :)

      There's a difference between data and information. Gerald, etc., have a habit of tweeting realtime observations, thereby stimulating all sorts of speculation about what it may or may not mean. I guess that's how he makes money (?), but all this unprocessed data simply serves as noise around these releases.

      Doesn't anyone wait until all the information is in, and THEN publish a comprehensive review?
      • Reply
      • 0
    16. LensFungus
      August 1, 2020 at 5:28 pm
      I own a FullHD tv from 2012, it was a $2500 top of the line 55” from Samsung.
      I last night finished my binge watching the Netflix series “DARK”, which is amazing btw, and I sat there through 3 seasons completely amazed by how ridiculously sharp and detailed the video quality is. It’s not “pretty decent for an old tv” or “fine for 1080”, it’s amazingly detailed and sharp.

      I always drop by the stores to see what’s new in 4K and 8K and the only amazing new thing is how detailed the 8K is at a viewing distance of 10 cm. I can’t see the need for 4K and 8K. Yes cropping bla bla, but output? I rather have superb 1080 than iPhone 4K.
      Dark:
      I don't wanna see Adam's skin in 8k.
      • Reply
      • 0
    17. Twinix
      August 1, 2020 at 5:29 pm
      The R6 will not work for me as a hybrid, as it seems to be to unreliable with how much I can record after shooting stills or video for 15mins, stills, video, then suddenly as a b cam for interviews (so 30mins for example). My non weatherproof camera has not failed yet even though it has rained on it several times, so weaker weather sealing is fine as heat problem gets fixed for me.
      • Reply
      • 0
    18. stevensteven
      August 1, 2020 at 5:37 pm
      Do these numbers represent shooting limits while the camera is rolling only, or does it also include idle time ? If its rolling only, perfectly fine for me...
      • Reply
      • 0
    19. privatebydesign
      August 1, 2020 at 5:40 pm
      One thing of context that I have only seen written once. Even when the camera stops recording in the limited modes, 8k, 4k120 etc, it will still work as a stills and video camera for any other mode, instantly. This is not the behavior all other hybrids exhibit, once they ‘overheat’ they are bricks. The Canon NEVER bricks even when it won’t record in the limited modes anymore.
      • Reply
      • 0
